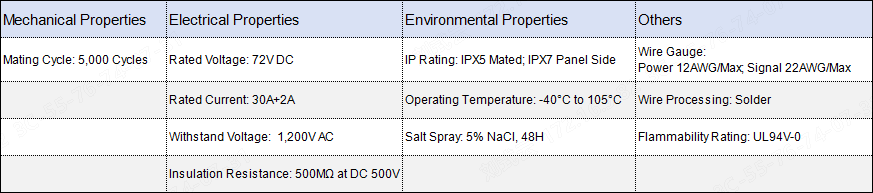

Rated Voltage: 72V DC
Rated Current: 30A+2A
Withstand Voltage: 1,200V AC
Insulation Resistance: 500MΩ at DC 500V
IP Rating: IPX5 Mated, IPX7 Panel Side
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 5,000 Cycles
Wire Gauge: Power 12AWG/Max, Signal 22AWG/Max
Wire Processing: Solder
Flammability Rating: UL94V-0
Products

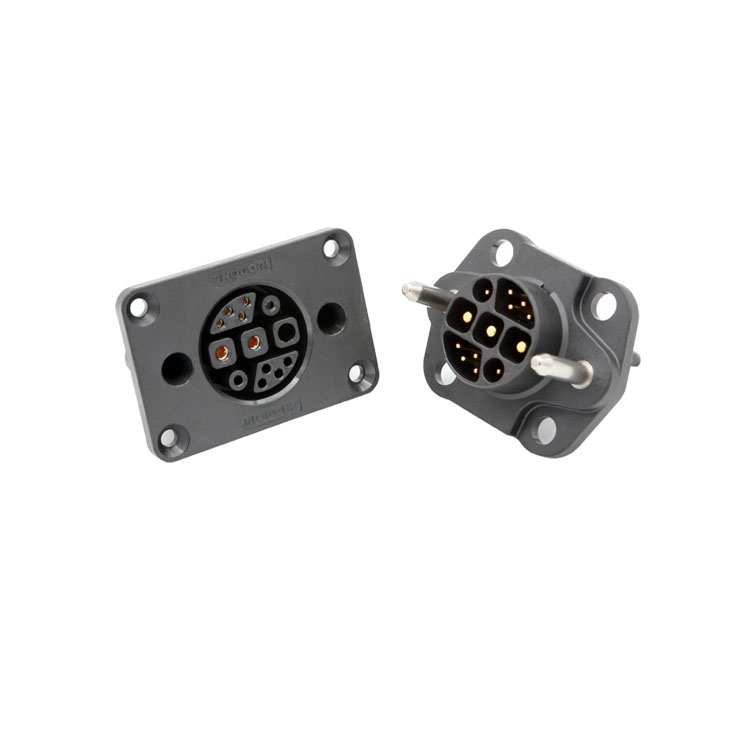

FC26 2+5 Pin（30A+2A）
For electric motorcycle battery swap systems, charging and discharging.
Advantages
● Male & female floating design
● 90° female exit (low profile)
● IPXXB female-side protection
● 180° blind-mating
● Independent signal pin (anti-corrosion)
● RoHS & REACH compliant
● Male & female floating design
● 90° female exit (low profile)
● IPXXB female-side protection
● 180° blind-mating
● Independent signal pin (anti-corrosion)
● RoHS & REACH compliant
