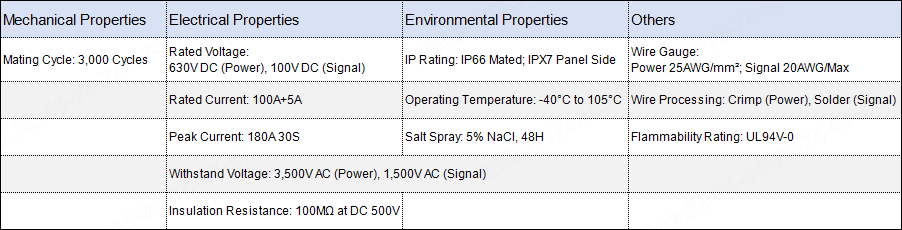

Rated Voltage: 630V DC (Power), 100V DC (Signal)
Rated Current: 100A + 5A
Peak Current: Power 180A 30S
Withstand Voltage: 3,500V AC (Power), 1,500V AC (Signal)
Insulation Resistance: 100MΩ at DC 500V
IP Rating: IP66 Mated, IPX7 Panel Side
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 3,000 Cycles
Wire Gauge: Power 25mm²/Max, Signal 20AWG/Max
Wire Processing: Crimp (Power), Solder (Signal)
Flammability Rating: UL94V-0

As electrified equipment demands greater power and charging/discharging capability, particularly in applications such as high-performance electric motorcycles, connectors must support high-voltage, high-current transmission while accommodating different battery structures, installation spaces, and cable layouts. The market needs a proven charging and discharging connection solution with flexible configurations and intuitive operation. The Banga100 Series is designed to meet these needs, offering versatile configurations and a user-friendly operating experience.

The Banga100 Series is a proven charging and discharging connection solution for high-performance electric motorcycles, battery systems, and other high-voltage electrical applications. It combines high-voltage, high-current transmission with versatile configurations and intuitive operation to meet diverse installation and connection requirements.

High Voltage & High Current
Supports 100A rated current and 630V DC for battery charging and discharging.

Flexible Configurations

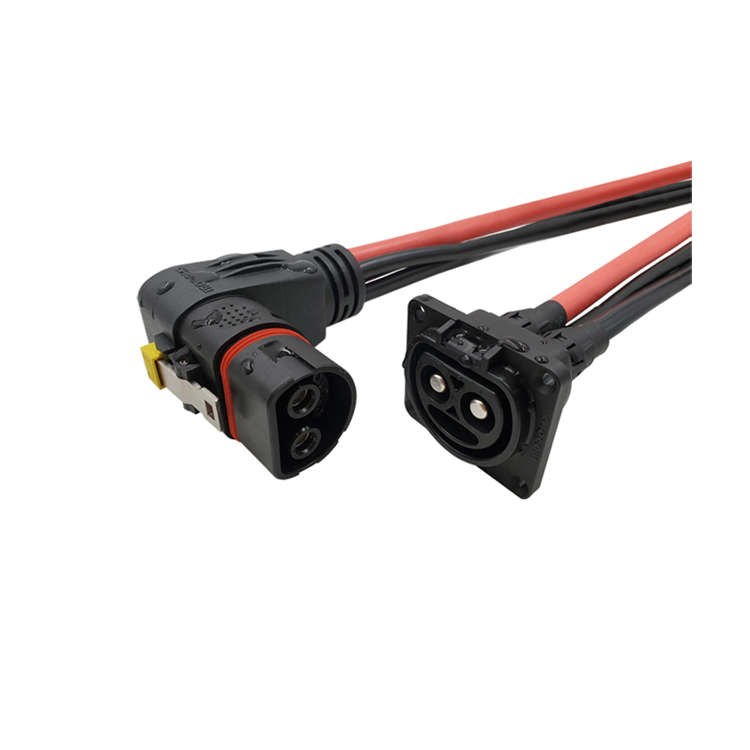

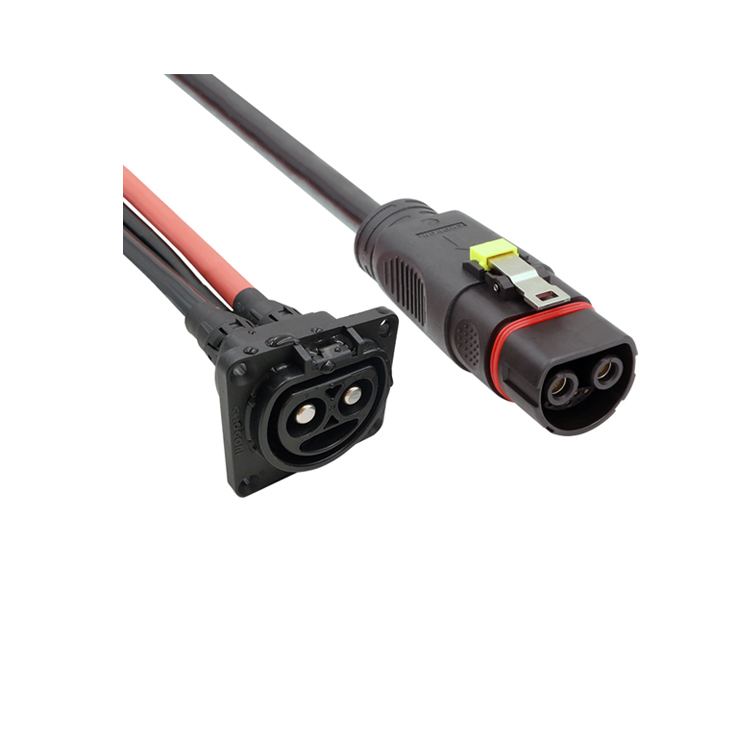

Both plugs and receptacles are available with 90° or 180° cable exits. Countersunk and raised panel-mount receptacles accommodate different installation requirements.

Intuitive Latch Locking
Easy to identify and operate, with clear visual confirmation of secure locking.

Proven Performance
A mature product platform validated through years of real-world applications.

● High-Performance Electric Two- and Three-Wheelers
● Battery Charging and Discharging Systems
● Removable and Swappable Battery Systems
