Rated Voltage: 72V DC
Rated Current: 40A+5A
Withstand Voltage: 1,500V AC
Insulation Resistance: 100MΩ at DC 500V
IP Rating: IPX5 Mated, IPX7 Panel Side
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 5,000 Cycles
Wire Gauge: Power 10AWG/Max, Signal 20AWG/Max
Wire Processing: Crimp (Power), Solder (Signal)
Flammability Rating: UL94V-0

In shared mobility and battery swapping applications, connectors must withstand frequent mating cycles while ensuring smooth connections between vehicles, batteries, and swapping stations, often in harsh outdoor environments. Conventional connectors typically suffer from limited lifespan, difficult alignment, and insufficient protection, making it challenging to achieve both high efficiency and reliability. The Chogori FC09 floating connector series effectively addresses these challenges.

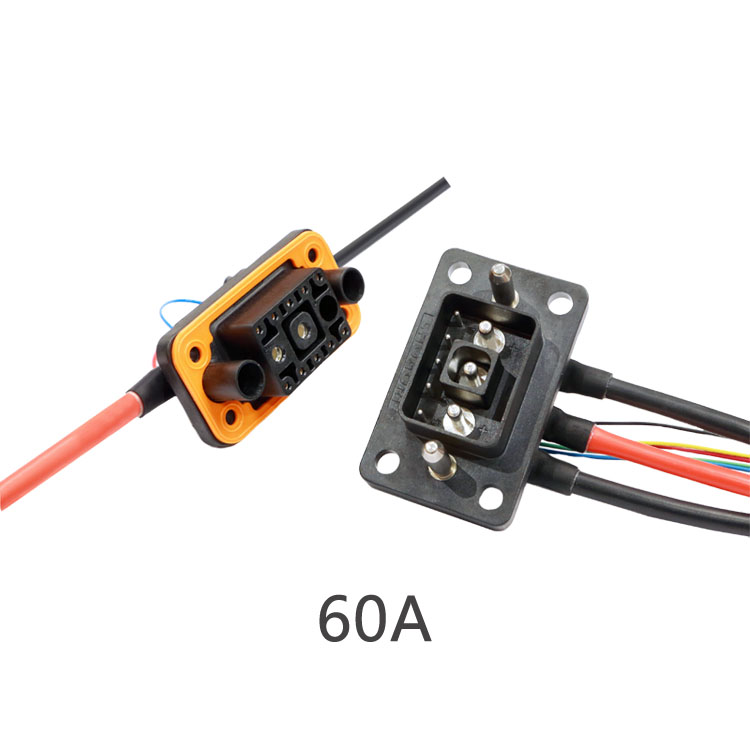

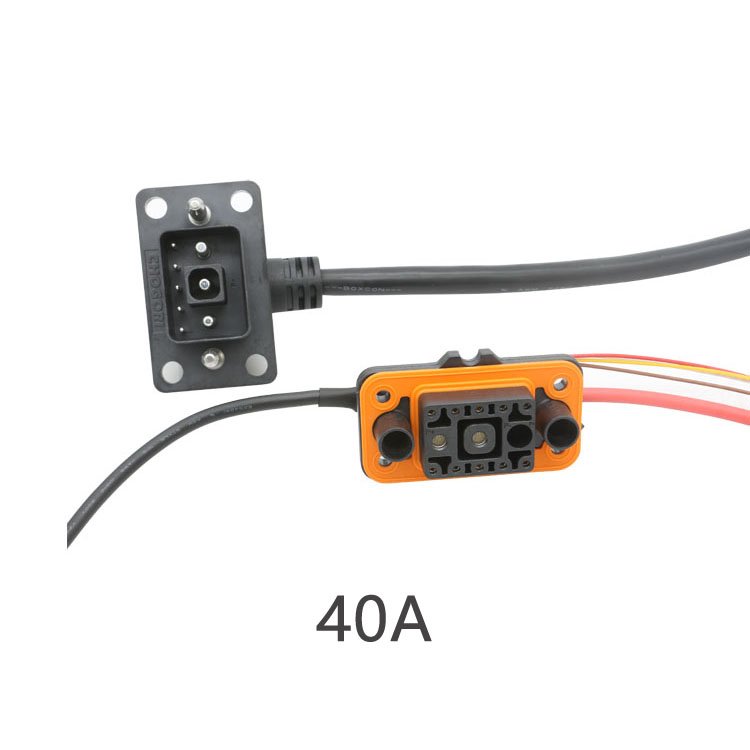

FC09 floating series battery connector features a 2+5 pin configuration with a current rating of 40A–60A. Designed for high-frequency mating applications, it supports reversible insertion and delivers over 5,000 mating cycles. It enables integrated power and signal transmission between the vehicle and battery, making it ideal for battery swapping and shared mobility scenarios.

• Floating Structure Design: Floating male interface compensates for misalignment, enhances vibration resistance, and supports up to 5,000 mating cycles.
• Reversible Blind Mating: No alignment required, enabling quick and efficient plug-in operation.
• All-Weather Reliability: Operating temperature from -40°C to 105°C; protection up to IPX7 (battery side), IPX6 (vehicle side, optional), IPX5 (mating side, optional) .
• Push-Pull Mating: Direct plug-and-play without locking or unlocking actions, ideal for high-frequency use.

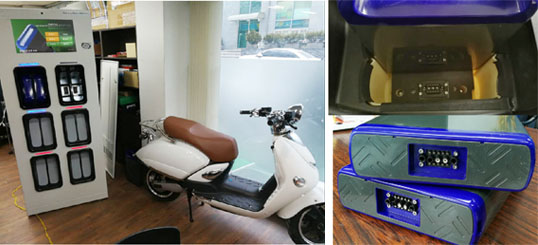

The FC09 is suitable for both consumer (ToC) daily charging/discharging and commercial (ToB) shared battery swapping and robotic battery swapping systems. It serves global markets including China, North America, East Asia, Southeast Asia, Africa, and South America, providing a high-power, safe, and reliable connection solution for the rapidly growing e-mobility industry.
