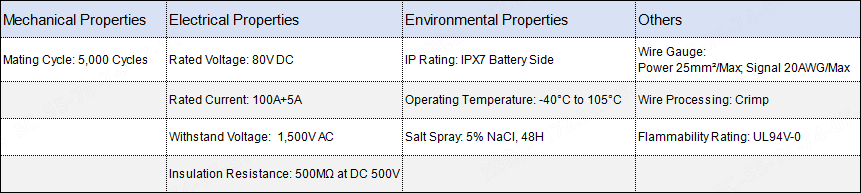

Rated Voltage: 80V DC
Rated Current: 100A+5A
Withstand Voltage: 1,500V AC
Insulation Resistance: 500MΩ at DC 500V
IP Rating: IP67 Battery Side
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 5,000 Cycles
Wire Gauge: Power 25mm²/Max, Signal 20AWG/Max
Wire Processing: Crimp
Flammability Rating: UL94V-0 (Plastic Material)
