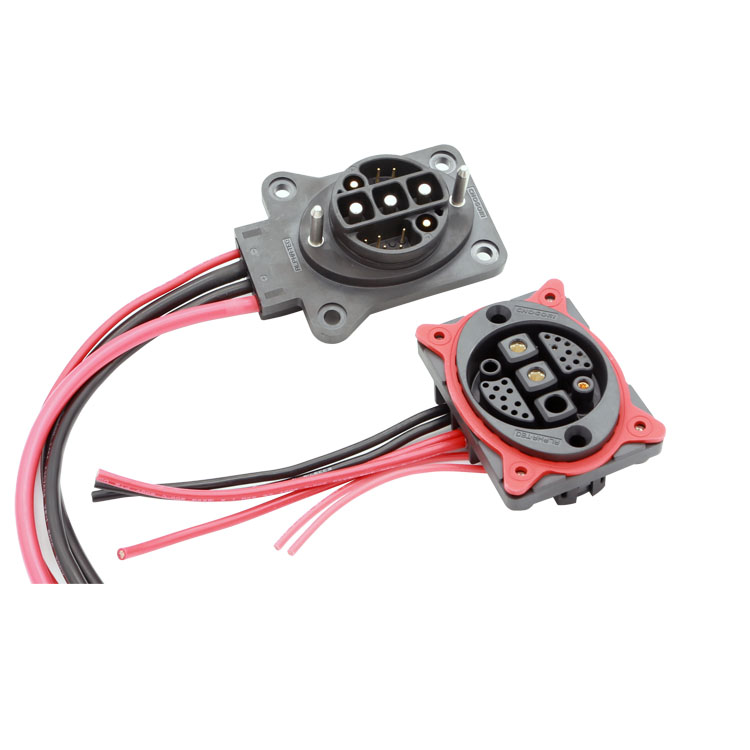

FC29 2+1+10 Pin（100A+30A+2A）

For electric motorcycle battery swap systems, charging and discharging.

Advantages
● IPXXB female-side protection
● Male floating design
● Dedicated 30A charging pin
● 90° female exit (low profile)
● 180° blind-mating
● Vehicle-side overmolded & waterproof
● RoHS & REACH compliant

Specifications Related

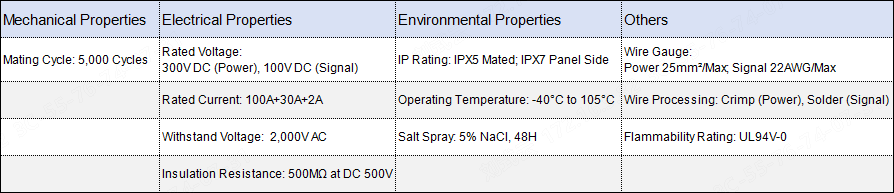

Specifications

Rated Voltage: 300V DC(power), 100V DC(signal)
Rated Current: 100A+30A+2A
Withstand Voltage: 2,000V AC
Insulation Resistance: 500MΩ at DC 500V
IP Rating: IPX5 Mated, IPX7 Panel Side
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 5,000 Cycles
Wire Gauge: Power 25AWG/Max, Signal 22AWG/Max
Wire Processing: Crimp (Power), Solder (Signal)
Flammability Rating: UL94V-0 (Plastic Material)
