ES-CM06 2+10 Pin (150A+5A)

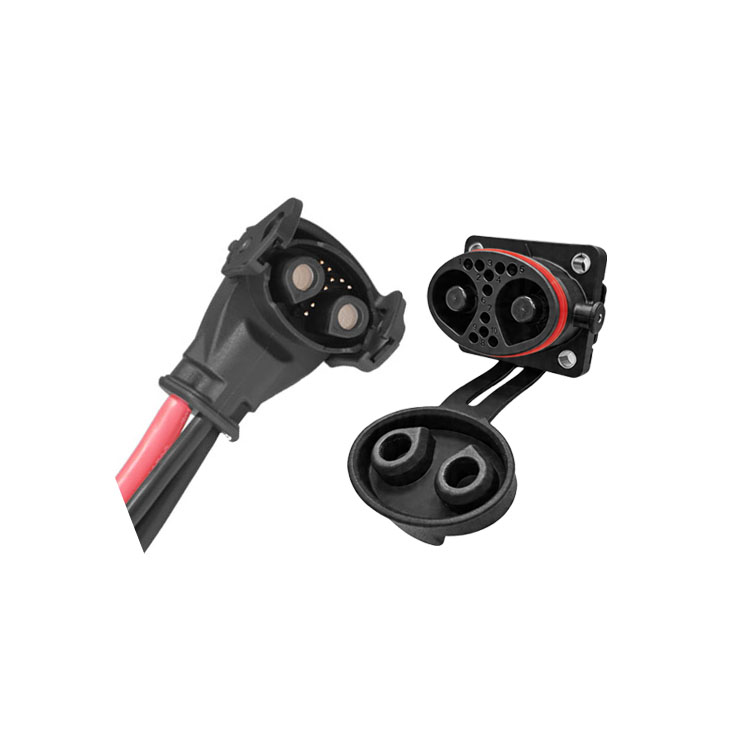

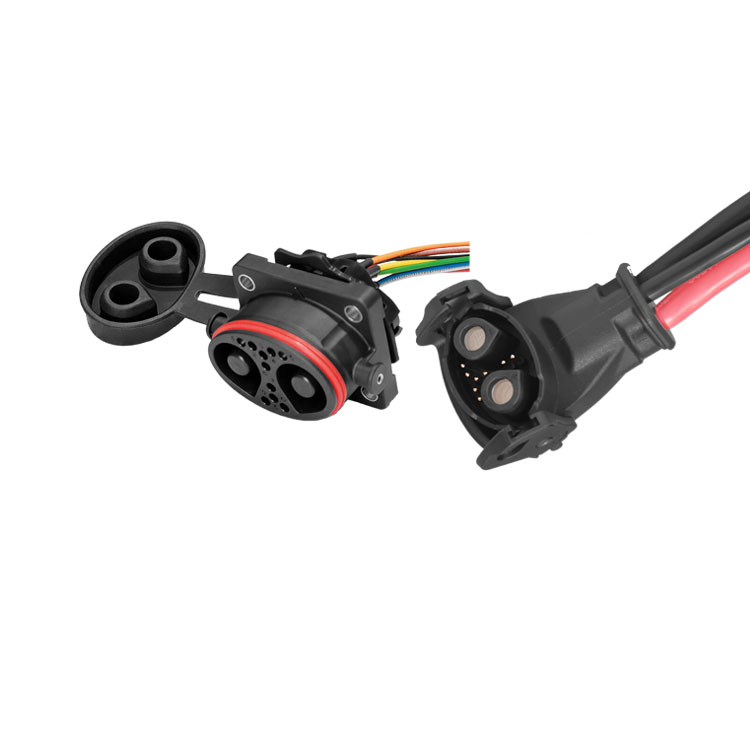

ES-CM06 is a highly reliable discharge connector built for high-performance LEV platforms. Featuring an integrated power-and-signal design, it delivers a rated current of 2 × 150A + 8 × 5A and a peak current of 200A (60s) in a compact package.

Advantages
● High Reliability, IP67 / IP69K Protection — Designed for harsh environments.
Compact Design, 20% Smaller than Comparable Products — More battery pack space.
Easy Operation, Assist Handle Design — Faster, easier plug & unplug.

Specifications Challenges Positioning Applications FAQ Related

Specifications

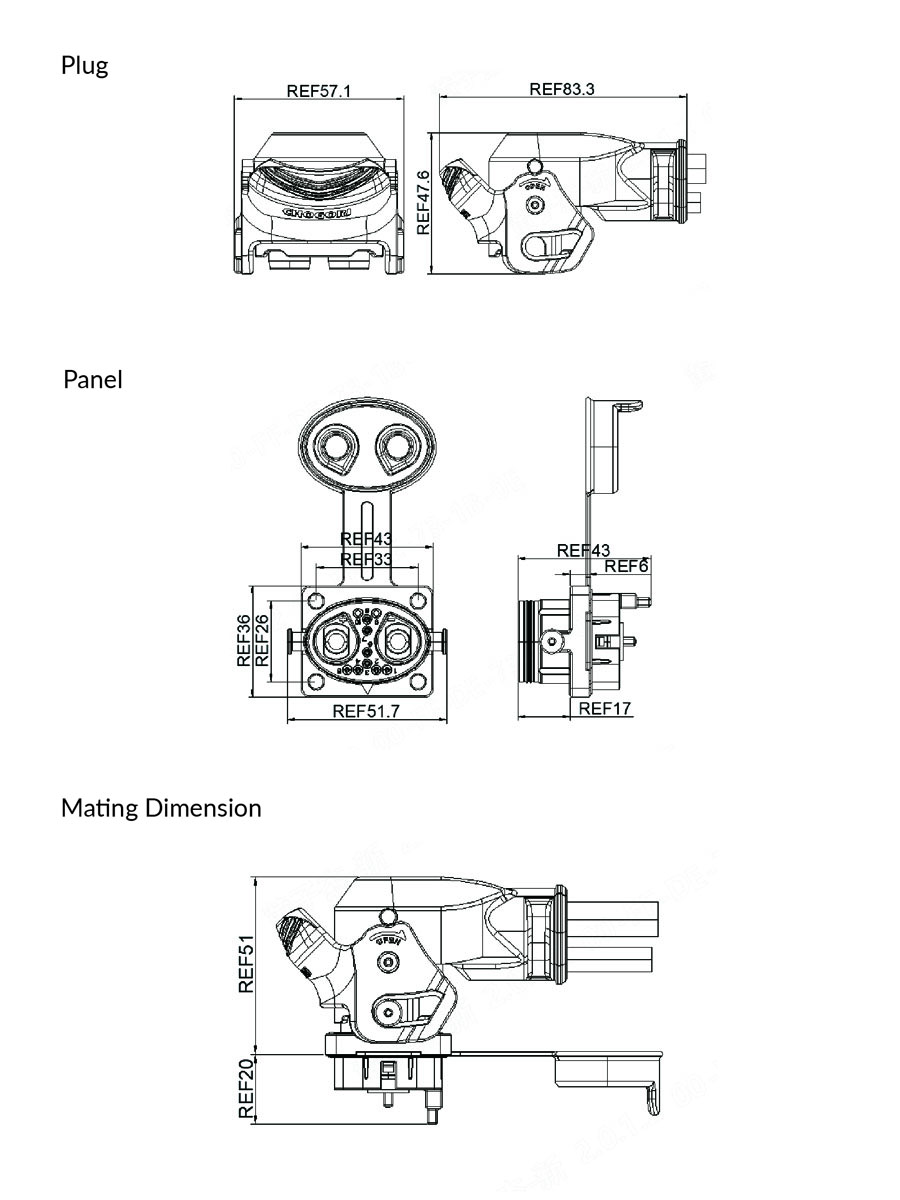

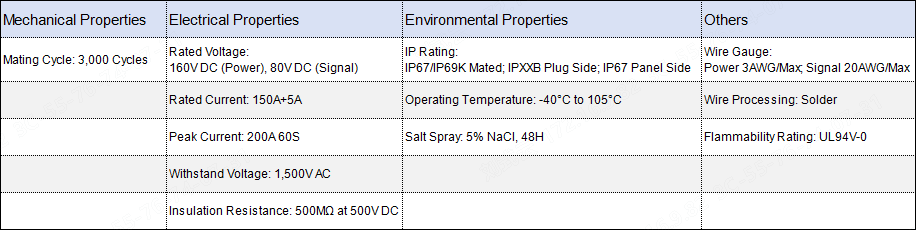

Rated Voltage: 160V DC (Power), 80V DC (Signal)
Rated Current: 150A+5A
Peak Current: 200A 60S
Withstand Voltage: 1,500V AC
Insulation Resistance: 500MΩ at 500V DC
IP Rating: IP67/IP69K Mated; IPXXB Plug Side; IP67B Panel Side
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% NaCI, 48h
Mating Cycle: 3,000 Cycles
Wire Gauge: Power 3AWG/Max; Signal 20AWG/Max
Wire Processing: Solder(Power) Solder(Signal)/Plug Side; Busbar(Power) Solder(Signal)/Panel Side
Flammability Rating: UL94V-0

Challenges

As LEVs continue to evolve toward higher power, longer range, and greater system integration, discharge connectors are required to carry higher current while maintaining reliable performance within limited installation space. They must also withstand demanding operating conditions such as vibration, rain, water immersion, and high-pressure washing.
The ES-CM06 is built for this challenge.

Positioning

ES-CM06 is a highly reliable connectivity solution featuring a compact design and high-current capability, built for high-performance LEV discharge systems.

With an integrated power-and-signal design and an optimized structure, the ES-CM06 delivers High Reliability, Compact Design, and Easy Operation within a smaller footprint, helping customers improve vehicle reliability, extend driving range, and enhance system integration efficiency.

Applications

ES-CM06 is more than a high-current connector. It is a discharge connection solution combining High Reliability, Compact Design, and Easy Operation.

For LEV platforms pursuing higher power, longer range, and greater system integration, ES-CM06 helps vehicle manufacturers, battery manufacturers, and system integrators achieve stable and reliable power connections within limited installation space.
