As equipment becomes more compact and applications face increased vibration and demanding outdoor conditions, connector reliability becomes increasingly critical. Conventional connectors may be susceptible to loosening, water ingress, and integration challenges in space-constrained designs.

The Mini 6pin connector is designed to address these requirements with a compact form factor for space-limited installations, threaded locking for a secure and stable connection, and IP67 protection for reliable performance in demanding environments.

Supporting multi-channel signal transmission within a compact footprint, the Mini 6pin connector helps enable more efficient equipment integration and optimized internal layouts.

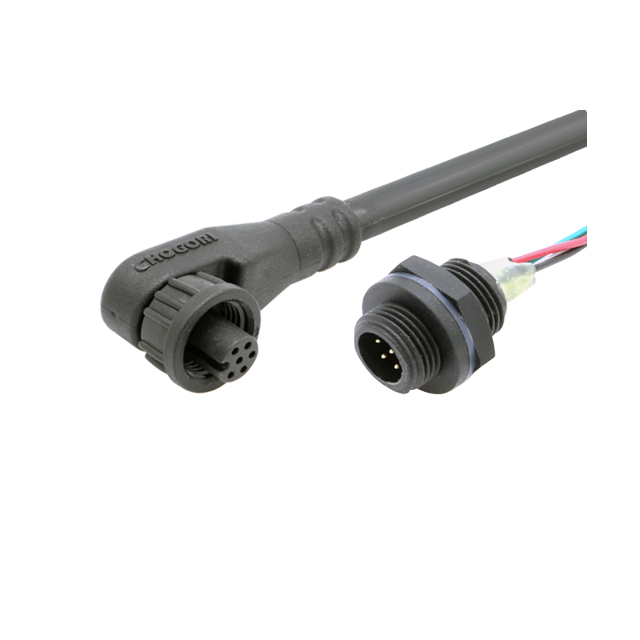

The Mini 6Pin is a wire-to-board signal connectivity solution designed for compact electronic equipment. Featuring a right-angle plug and threaded locking mechanism, it enables reliable and stable signal connections in space-constrained installations.

As equipment designs become more compact and applications operate in increasingly demanding environments, connectivity must address challenges related to limited installation space, connection stability, and protection against water and dust ingress. The Mini 6Pin is designed to help address these requirements while supporting more efficient internal equipment layouts.

Suitable for applications including energy storage, LED lighting, IoT, GPS tracking, marine electronics, industrial automation, and electric vehicles, the Mini 6Pin provides reliable signal connectivity across a range of demanding applications.

1. Compact Design for Space-Efficient Signal Connections

The Mini 6Pin features a compact design that enables multiple signal connections within limited installation space. Compared with larger connector solutions, it provides a more space-efficient option for compact electronic equipment and supports greater flexibility in internal system layouts.

Typical applications include: Sensor interfaces, Control signal transmission, Monitoring systems, Communication interfaces, Auxiliary signal connections, Electronic control modules

By reducing the connector footprint, the Mini 6Pin helps optimize internal space utilization in energy storage systems, IoT devices, LED lighting and industrial electronic equipment.

2. Threaded Locking for Enhanced Connection Stability

In applications such as industrial automation, marine equipment, vehicles and energy storage systems, vibration, mechanical movement and cable pulling forces can affect connection stability during operation.

The Mini 6Pin features a threaded locking mechanism that provides secure mechanical engagement between the plug and receptacle. This design helps reduce the risk of connection loosening caused by equipment vibration, mechanical movement and cable strain, supporting reliable performance in applications requiring stable long-term connections.

3. IP67 Protection for Demanding Environments

For outdoor and industrial electronic equipment, connectors may be exposed to environmental factors such as dust, moisture and rain, making environmental protection an important consideration in connection system design.

The Mini 6Pin signal connector can achieve an IP67 protection rating, helping prevent dust ingress while meeting applicable water-resistance requirements.

It is suitable for electronic equipment exposed to environments involving dust, moisture and rain, providing a reliable signal connection solution for energy storage, IoT, LED lighting and industrial electronics.

Energy Storage, Industrial Automation, LED Lighting, GPS Tracking, Marine, Electric Vehicle
