With the rapid growth of electric two- and three-wheelers worldwide, reliable EV charging and discharging connectors have become essential for safe and efficient power transfer. The Chogori Large 2+1+5 series has been a proven industry-standard battery connector for nearly a decade. As e-mobility evolves toward higher voltage, higher current, and longer range, the demand for high-performance connectors continues to rise. At the same time, batteries—being high-value assets—require enhanced protection, as water ingress can lead to performance issues and costly maintenance. This creates a growing need for connectors that provide waterproof protection even in an unmated condition.

In response, we developed the next-generation Large Pro 2+1+5 — a high-performance EV connector for electric two- and three-wheelers.

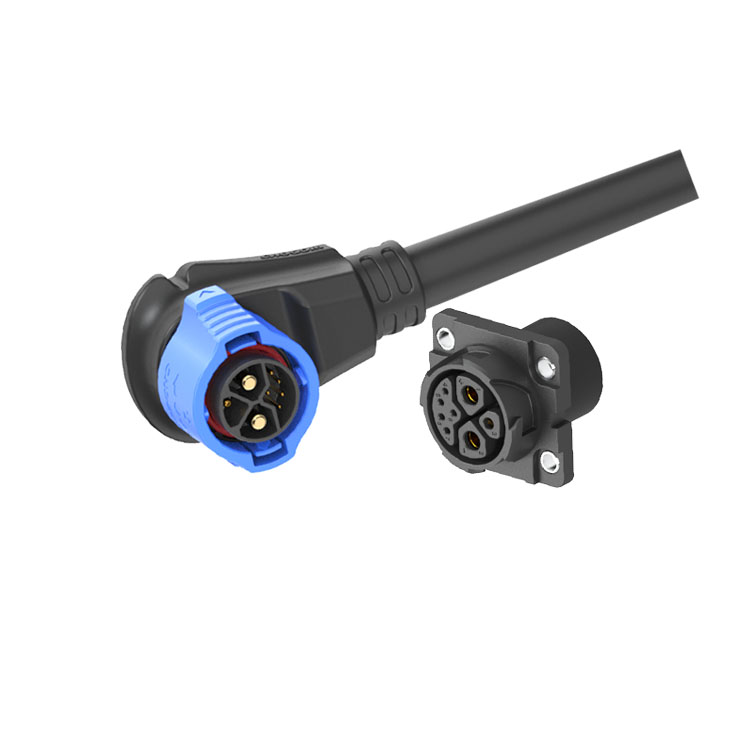

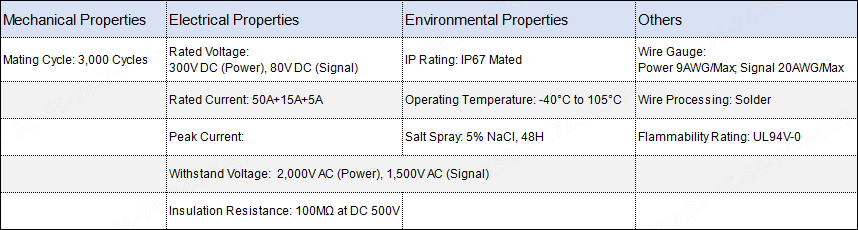

The Large Pro 2+1+5 is a high-performance EV charging and discharging connector designed specifically for electric two- and three-wheelers. It supports up to 300V / 50A, featuring high reliability, user-friendly operation, and full compatibility with the Large 2+1+5 series.
Engineered for e-mobility and battery systems, this connector enables safe, stable, and efficient power connection even in harsh environments — helping customers achieve reliable charging under complex conditions.

1.High Reliability:
● Exceptional Vibration Resistance
The upgraded 4-locking-dots mechanism provides superior vibration resistance, ensuring stable battery discharge under challenging road conditions and enhancing safety and the riding experience.

● Waterproof Panel Design

The panel side achieves IPX7-rated single-sided waterproofing, significantly enhancing performance in outdoor environments, extending the lifespan of batteries and connected equipment, and improving safety.

2.Ease of Use
● Proper Connection Detectability
The Large Pro 2+4 Connector features arrow indicators, enabling users to easily confirm secure connections, ensuring reliable and confident operation.

3.Compatibility
● Compatibility with Existing Large Series

Fully compatible with existing Large connectors, it facilitates seamless transitions without the need to upgrade current batteries, charging stations, or chargers, ensuring stable operation.

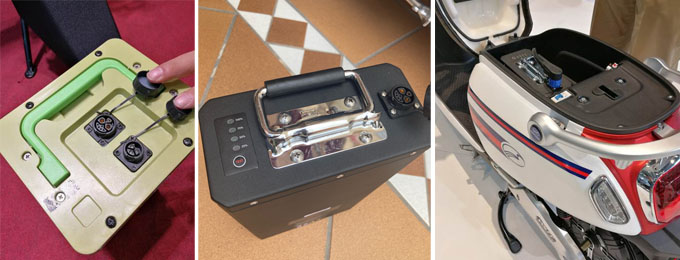

● For Electric Two- and Three-Wheeler Manufacturers
As a high-performance EV connector solution, the Large Pro 2+1+5 offers high reliability and a user-friendly design, helping improve vehicle quality and meet the strict safety and performance demands of the e-mobility market.

● For Battery and Charging Equipment Manufacturers
With enhanced voltage and current capacity, it serves as an ideal battery connector for battery systems and charging equipment, supporting high-power and efficient charging and discharging applications.

● For Shared Mobility Service Providers

Designed for urban mobility and high-frequency operation, its durable and user-friendly design ensures safe and efficient battery swapping, improving overall operational efficiency.
