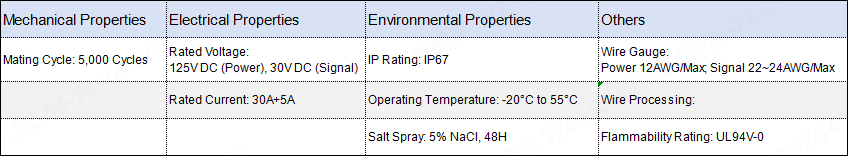

Rated Voltage: 125V+30V
Rated Current: 30A+3A
IP Rating: IP67
OperatingTemperature: -20°C to 55°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 5,000 Cycles
Wire Gauge: Power 12AWG/Max, Signal 22-24AWG/Max
Flammability Rating: UL94V-0
Products
RS30 2+6 Pin (30A+3A)

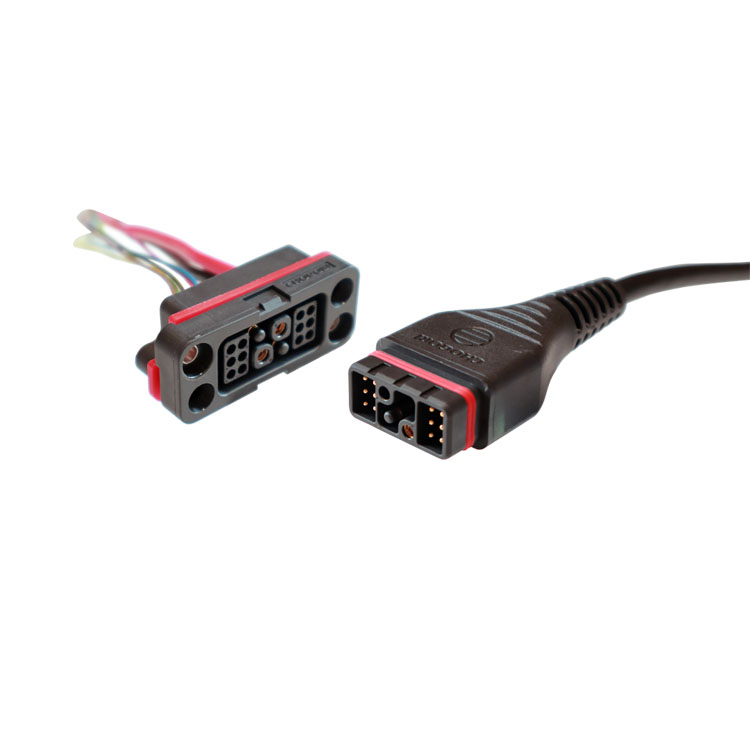

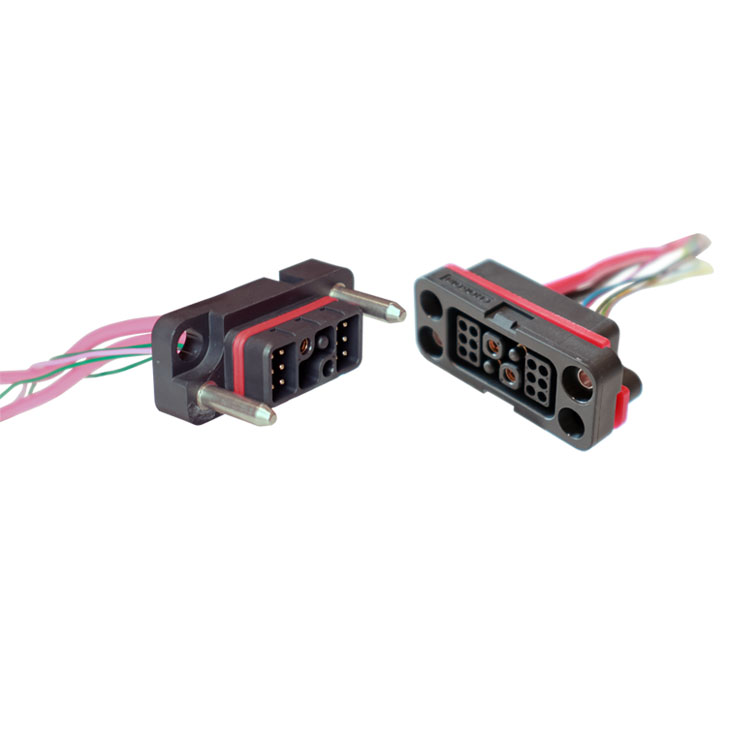

The RS30 features a 2-pin power + 6-pin signal configuration and supports reversible mating. It is rated at 125V + 30V and 30A + 3A.
Advantages
• Ultra-slim and compact design for space-constrained devices
• Low insertion and extraction force for easier battery swapping with less risk of tipping
• IP67 waterproof protection, preventing water ingress and short circuits in muddy, wet, and dusty outdoor environments
• High resistance to shock and vibration, ensuring stable power delivery during continuous movement
• Supports reversible battery connection, providing greater tolerance for installation errors
• Up to 5,000 mating cycles, delivering long service life, multi-scenario compatibility, and lower maintenance costs over time
• Ultra-slim and compact design for space-constrained devices
• Low insertion and extraction force for easier battery swapping with less risk of tipping
• IP67 waterproof protection, preventing water ingress and short circuits in muddy, wet, and dusty outdoor environments
• High resistance to shock and vibration, ensuring stable power delivery during continuous movement
• Supports reversible battery connection, providing greater tolerance for installation errors
• Up to 5,000 mating cycles, delivering long service life, multi-scenario compatibility, and lower maintenance costs over time
Specifications Challenges Positioning Features Applications Related
Specifications
Challenges
Robots and robotic dogs often operate in tight spaces, under constant movement and vibration, and in harsh outdoor environments. Traditional connectors can be bulky, prone to water ingress, loosening, and inconvenient battery replacement.
The RS30 features an ultra-slim and lightweight design that fits compact devices. Its low insertion and extraction force enables easy one-handed battery swapping. With IP67 protection, it resists water, dust, shock, and vibration to maintain stable power in demanding conditions.
The reversible mating design helps prevent damage caused by incorrect connection. Rated for up to 5,000 mating cycles, the RS30 supports both battery swapping and direct charging, providing flexible power options.
By delivering a reliable connection, the RS30 helps reduce maintenance costs and strengthens the overall competitiveness of your product.
The RS30 features an ultra-slim and lightweight design that fits compact devices. Its low insertion and extraction force enables easy one-handed battery swapping. With IP67 protection, it resists water, dust, shock, and vibration to maintain stable power in demanding conditions.
The reversible mating design helps prevent damage caused by incorrect connection. Rated for up to 5,000 mating cycles, the RS30 supports both battery swapping and direct charging, providing flexible power options.
By delivering a reliable connection, the RS30 helps reduce maintenance costs and strengthens the overall competitiveness of your product.
Positioning
The RS30 connector is specifically designed for robots and robotic dogs. With a range of advanced features, it addresses the common limitations of traditional connectors in demanding outdoor environments, helping reduce maintenance costs and improve overall equipment competitiveness.
Features
1. Ultra-Slim Design for Space Saving
The RS30 adopts a compact, ultra-slim board-to-board design with a lightweight profile. It fits perfectly into the limited internal space of robotic dogs without affecting overall assembly clearance. The design also supports both battery swapping and direct charging power architectures.
2. 5,000 Mating Cycles for Long Service Life
Designed for high durability, the RS30 withstands up to 5,000 mating cycles. It is ideal for frequent battery-swapping applications such as facility inspection and specialized operations. Stable contact performance helps prevent loosening and intermittent connection issues, significantly reducing maintenance and replacement costs over time.
3. High Vibration Resistance
Compliant with the stringent USCAR-2 V1 automotive connector standard, the RS30 can withstand continuous shock and high-frequency vibration caused by jumping, rolling, and impact during robotic dog operation. Its secure locking mechanism prevents accidental disengagement, ensuring uninterrupted power and signal transmission in dynamic environments.
4. IP67 Waterproof
The RS30 features a multi-layer sealing design for comprehensive waterproof protection. The mated connector assembly achieves IP67, while both the battery side and device side provide independent IP67 protection. Sealing is applied throughout the contact and cable exit areas. During battery replacement in outdoor environments such as gravel, mud, or wet conditions, the connector effectively prevents dust, water splash, and moisture ingress, reducing the risk of short circuits. It is designed for demanding outdoor applications and operates reliably from -20°C to 55°C.
5. Dual-Sided Blind Mating
With an integrated power-and-signal design, the RS30 supports dual-sided blind mating, eliminating the need to identify the insertion direction. Users can complete battery replacement quickly with one hand. This design helps prevent damage caused by incorrect mating and greatly improves operational efficiency during outdoor and inspection tasks.
The RS30 adopts a compact, ultra-slim board-to-board design with a lightweight profile. It fits perfectly into the limited internal space of robotic dogs without affecting overall assembly clearance. The design also supports both battery swapping and direct charging power architectures.
2. 5,000 Mating Cycles for Long Service Life
Designed for high durability, the RS30 withstands up to 5,000 mating cycles. It is ideal for frequent battery-swapping applications such as facility inspection and specialized operations. Stable contact performance helps prevent loosening and intermittent connection issues, significantly reducing maintenance and replacement costs over time.
3. High Vibration Resistance
Compliant with the stringent USCAR-2 V1 automotive connector standard, the RS30 can withstand continuous shock and high-frequency vibration caused by jumping, rolling, and impact during robotic dog operation. Its secure locking mechanism prevents accidental disengagement, ensuring uninterrupted power and signal transmission in dynamic environments.
4. IP67 Waterproof
The RS30 features a multi-layer sealing design for comprehensive waterproof protection. The mated connector assembly achieves IP67, while both the battery side and device side provide independent IP67 protection. Sealing is applied throughout the contact and cable exit areas. During battery replacement in outdoor environments such as gravel, mud, or wet conditions, the connector effectively prevents dust, water splash, and moisture ingress, reducing the risk of short circuits. It is designed for demanding outdoor applications and operates reliably from -20°C to 55°C.
5. Dual-Sided Blind Mating
With an integrated power-and-signal design, the RS30 supports dual-sided blind mating, eliminating the need to identify the insertion direction. Users can complete battery replacement quickly with one hand. This design helps prevent damage caused by incorrect mating and greatly improves operational efficiency during outdoor and inspection tasks.
Applications
Humanoid Robots, Robotic Dogs, Service Robots, Cleaning Robots, AGVs & AMRs, Robotic Lawn Mowers, Other lithium-powered two-wheel and four-wheel battery-swapping vehicles
