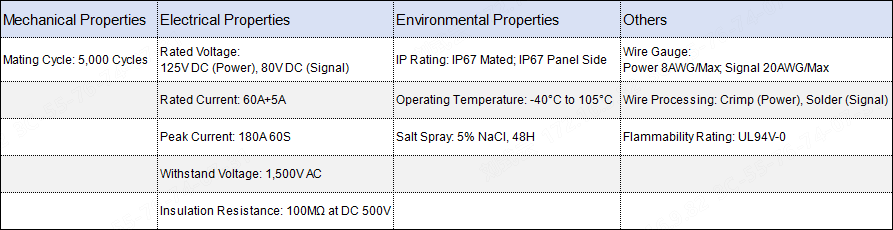

Specifications
Rated Voltage: 125V DC (Power), 80V DC (Signal)
Rated Current: 60A + 5A
Peak Current:
Withstand Voltage: 1,500V AC
Insulation Resistance: 100MΩ at DC 500V
IP Rating: IP67 Mated, IP67 Panel Side
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 5,000 Cycles
Wire Gauge: Power 8AWG/Max, Signal 20AWG/Max
Wire Processing: Crimp (Power), Solder (Signal)
Flammability Rating: UL94V-0
Challenges
As e-mobility charging and battery swapping systems continue to evolve toward higher power and more demanding operating conditions, traditional connector solutions face increasing challenges in vibration resistance, operational safety, and current capacity.
Manufacturers require a connector solution that delivers enhanced reliability and safety while maintaining compact size and optimized system cost for mainstream vehicle platforms.
Mate60 2+4/2+1+5 is developed to meet these evolving market requirements.
Positioning

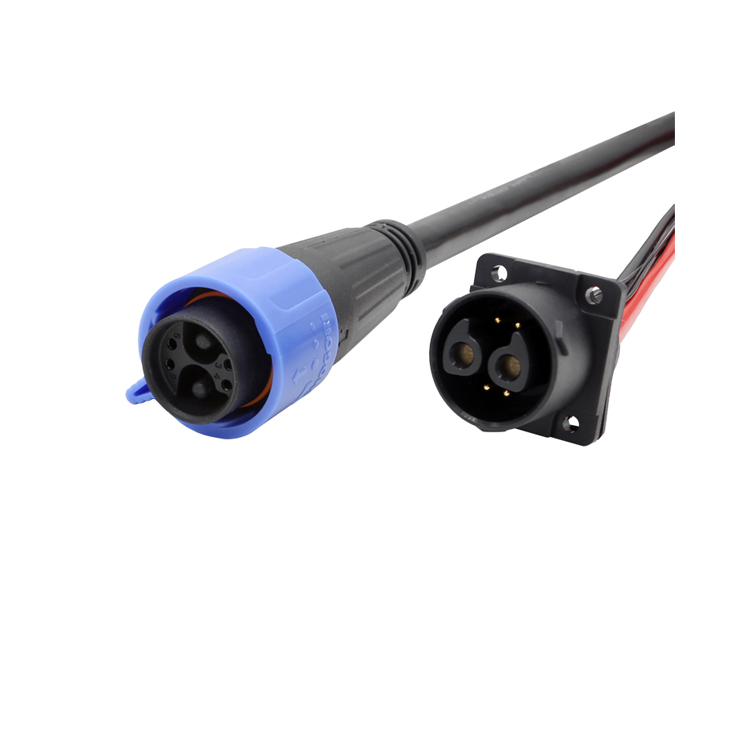

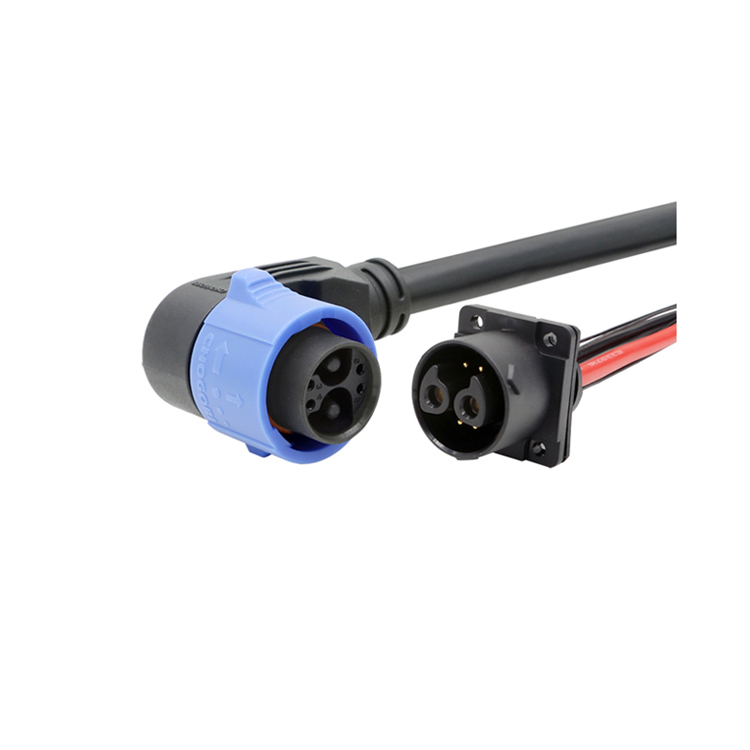

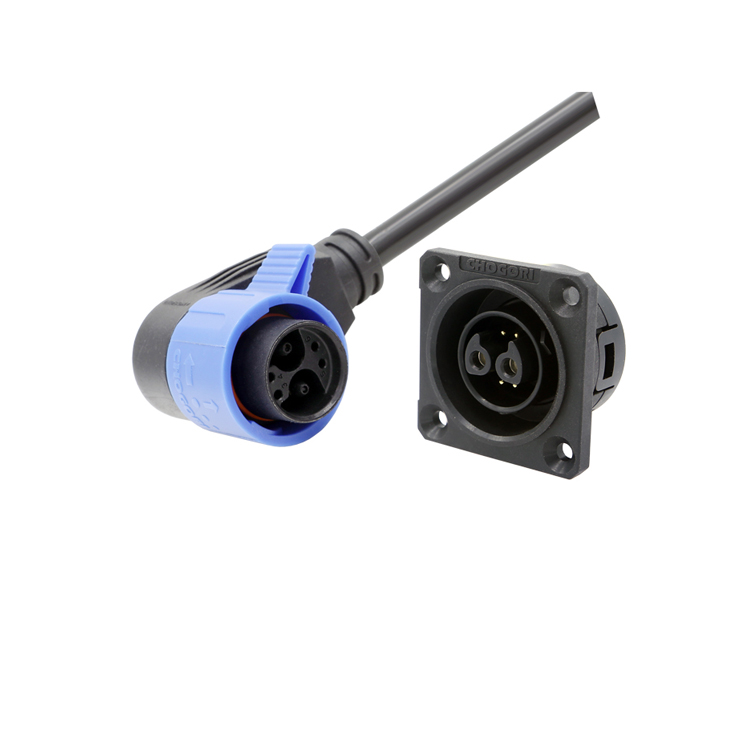

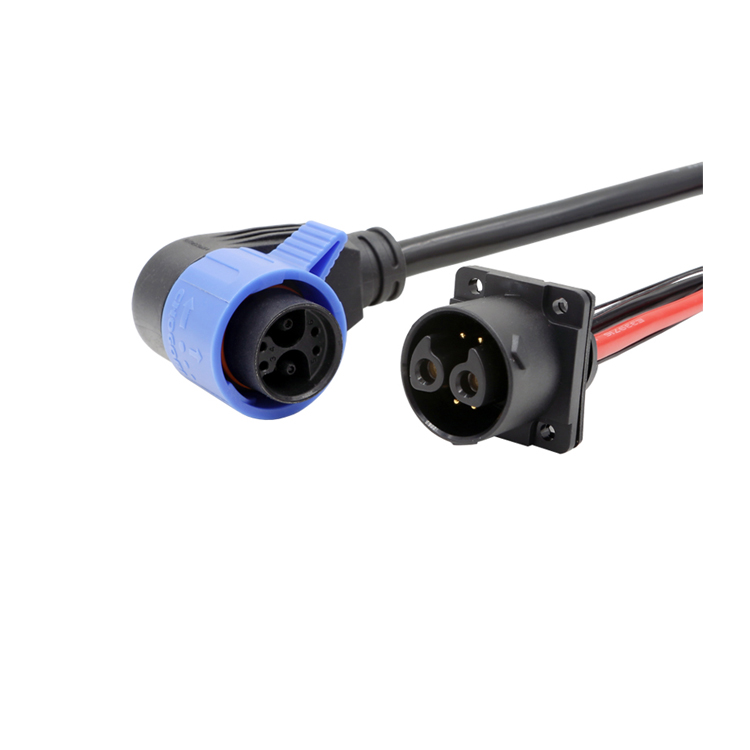

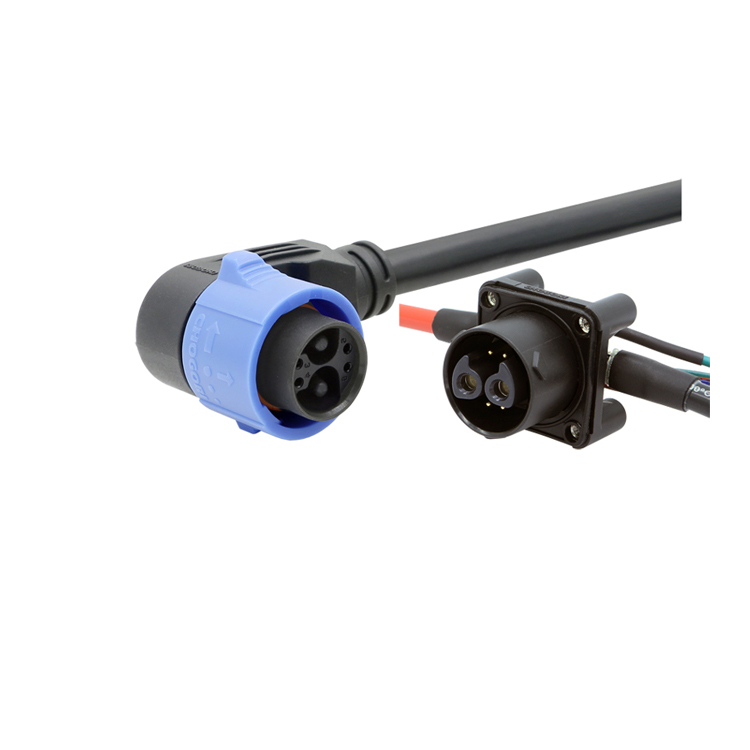

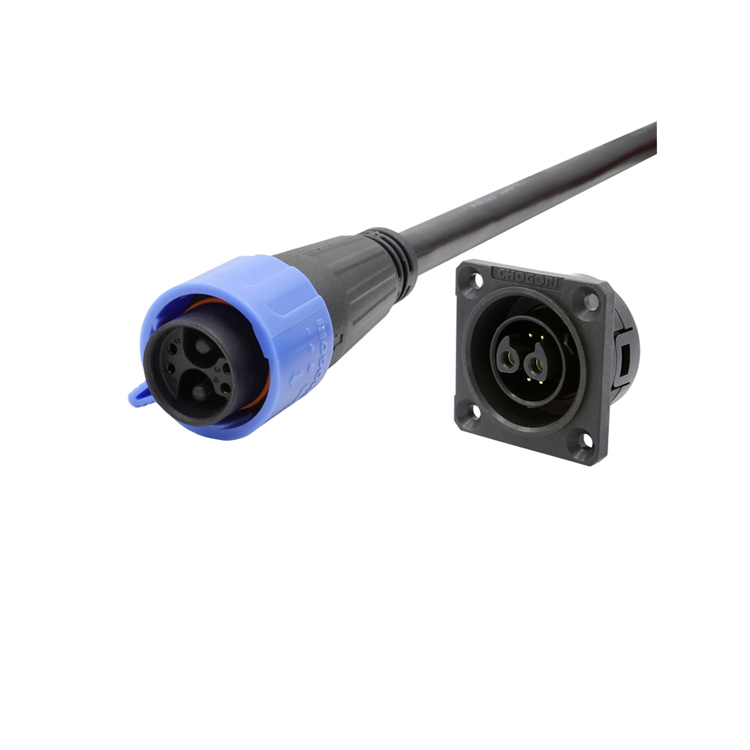

Mate60 2+4 is a 60A connector solution designed for mainstream e-mobility charging and battery swapping applications.
Features
Enhanced Anti-Vibration Structure
The optimized 3-lock mechanical structure enhances mating stability under continuous vibration conditions commonly found in e-motorcycle charging and discharging applications. Designed for stable power transmission and long-term durability, Mate60 delivers reliable connection performance in demanding e-mobility operating environments.
Finger-Proof Safety Design
Integrated finger-proof protection helps reduce the risk of accidental contact with live terminals, improving operational safety during handling and maintenance.
Balanced 60A Power Capability
With a 60A current rating, Mate60 offers an optimized balance between connector size, electrical performance, and system cost for mainstream power platforms.

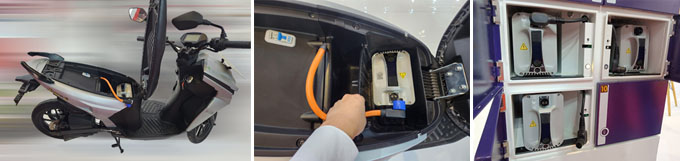

Applications
Typical applications include:
Electric Motorcycles
Battery Swapping Systems
Charging & Discharging Equipment
Light Electric Vehicles
E-Mobility Power Platforms
Energy Storage
The Mate60 2+4 is designed to support reliable power transmission in demanding operating environments commonly found in urban mobility and battery service applications.
Q
Can Chogori provide remote video support or send technical personnel for on-site assistance?
A
Chogori provides comprehensive pre-sales and after-sales technical support throughout the entire project lifecycle. We offer remote technical assistance via phone calls, video conferences, and other online channels. For large-scale projects or complex technical issues, professional engineers can be arranged for on-site support.
Customers can contact us through multiple channels, including our website and technical support hotline, to receive timely assistance and effective solutions.
Q
Are Chogori connector samples provided free of charge? What is the process and lead time for requesting samples?
A
Chogori supports free sample requests for potential customers, subject to review by the sales or technical support team.
Process: Contact the sales team → Provide the required product model and specifications → Submit project or quotation information → Upon approval, the samples will be shipped.
The typical sample shipping lead time is 2–7 business days, depending on the model and sample availability.
Q
What is the minimum order quantity (MOQ)? Can small-batch orders be supported for initial trial production?
A
As a manufacturer with scalable production capabilities, Chogori can handle MOQ requirements flexibly based on the product series and customization needs. Most standard models support small trial-production batches, with samples available free of charge or for a nominal fee.
For specially customized products, the minimum order quantity can be discussed based on specific requirements. We recommend contacting our sales team directly to coordinate the order quantity and production schedule.
Q
For exports to Europe, CE and RoHS compliance is required. Do you have a REACH SVHC test report available?
A
Chogori connector materials comply with RoHS and REACH environmental requirements, enabling the products to be marketed and used in Europe without compliance barriers. Customers who require a REACH SVHC test report may contact our sales or technical support team to obtain the relevant documentation.
Q
Has Chogori's connectors passed UL 1977 or UL 2238 certification?
A
Some Chogori products are UL certified, including certifications to standards such as UL 1977 and UL 2238. The company actively implements the IATF 16949 Quality Management System and maintains stringent quality management standards. For certification details and certificates for specific product models, please contact our sales team for further information.
