Rated Voltage: 3/4Pin 125V; 8Pin 60V; 14Pin 30V
Rated Current: 3/4Pin 10A; 8/14Pin 2A
IP Rating: IP67 & IP69K (Mated&Unmated)
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 500 Cycles
Wire Processing: Solder
Wire Gauge: 3/4Pin 18~20AWG; 8/14Pin 24~26AWG
Flammability Rating: UL94V-0

Traditional connectors struggle with miniaturization, vibration, moisture and dust. The compact Omni Series fits tight spaces, with 4-point locking for superior anti-vibration and dynamic waterproof sealing for harsh environments. Its dual-wing locking ring enables easy mating even in narrow on-site conditions. Supporting up to 10A and multiple contact configurations, it meets high-power transmission requirements. High-reliability connections reduce failures and maintenance costs, boosting end-product competitiveness.

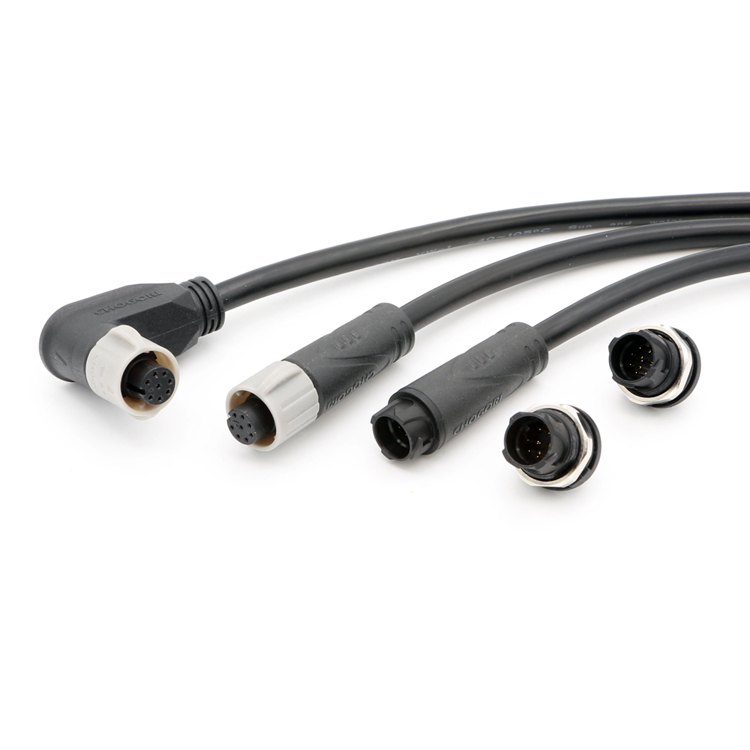

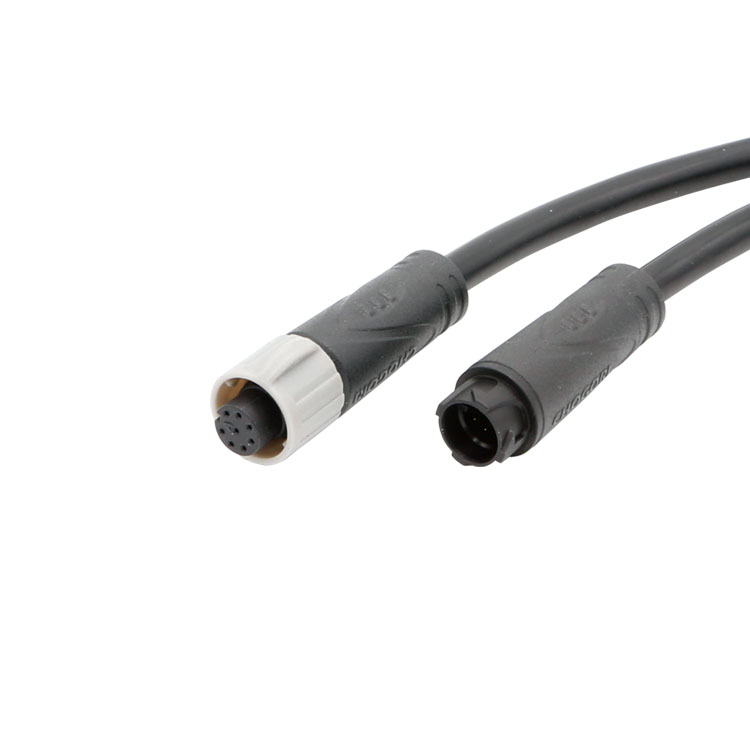

Omni Series connectors are high-performance industrial connectors with compact self-locking, 4-point locking and dynamic waterproofing, supporting IoT, LED lighting, industrial automation, energy storage and medical customers to solve unstable connection in compact and harsh environments.

1. Dynamic Waterproof
The Omni Series incorporates an advanced dynamic waterproof design, featuring an optimized lateral sealing structure. This enhancement provides more stable and consistent sealing performance, ensuring long-term protection against water and environmental exposure.

2. 4-point locking design for stable connections in high-vibration environments
The upgraded 4-point locking system ensures a more secure and stable connection compared to traditional designs. It delivers superior resistance to vibration and mechanical stress, making it highly reliable in demanding conditions.

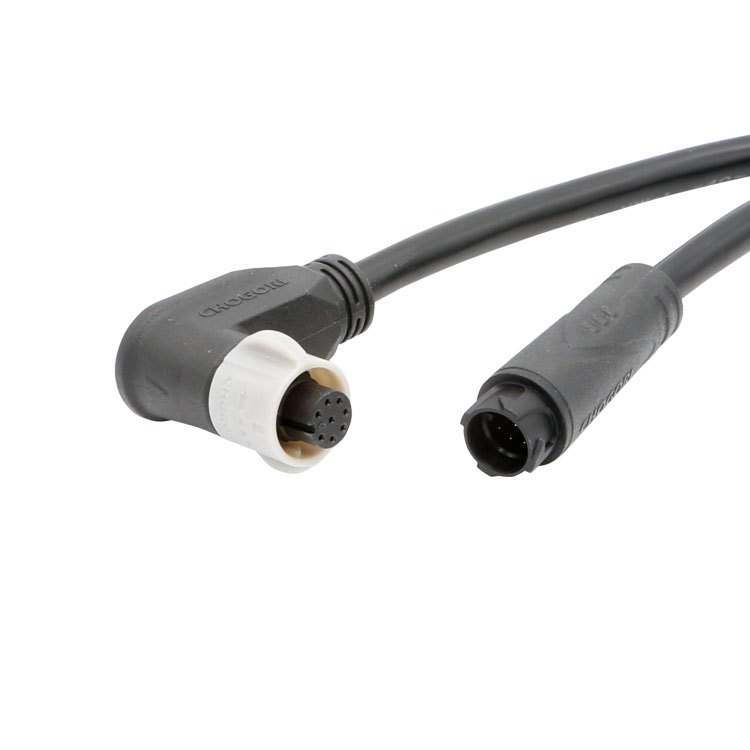

3. Ease of Use: Dual-Wing Locking Ring & Push-Locking Design
Equipped with an innovative dual-wing locking ring, the connector allows for quick and intuitive operation. Even in challenging installation environments—such as low visibility or with gloves—users can easily achieve secure mating and unmating.

Applications: Fleet Management, Energy Storage, Industrial Automation, LED Lighting, Smart Meter, Medical Equipment
