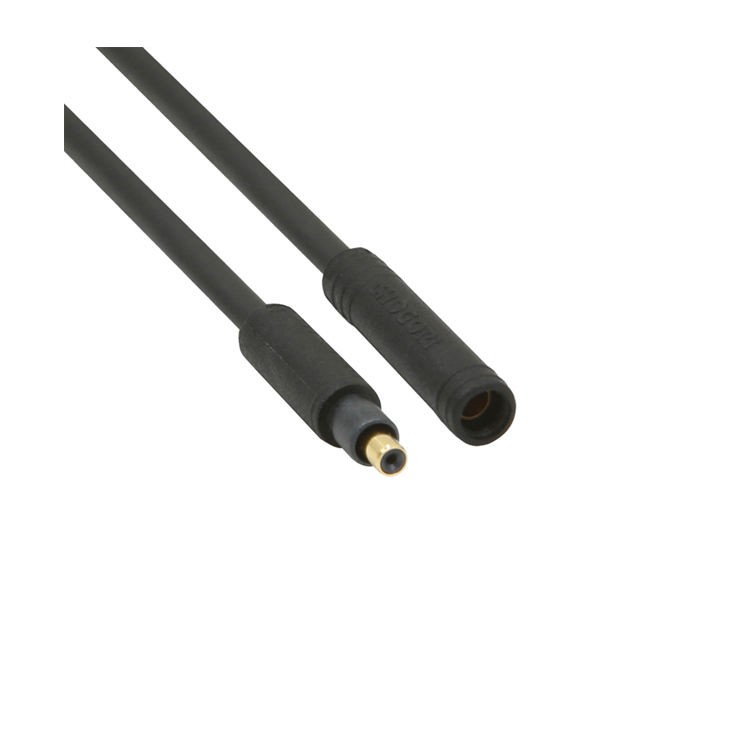

TX-2 (3A)

Signal connectors for various operating conditions, meeting the signal transmission needs of e-two-wheelers, smart devices, and more.

Advantages
● Push-pull for quick mating
● 360° blind-mating (no alignment)
● Easy insertion & reliable retention
● Compact size
● One-piece molding – sleek design
● RoHS & UL complian

Specifications Challenges Positioning Features Applications FAQ Related

Specifications

Rated Voltage: 48V AC / 60V DC
Rated Current: 3A
Withstand Voltage: 500V AC
Insulation Resistance: 20MΩ at DC 500V
IP Rating: IP66 Mated
OperatingTemperature: -25°C to 80°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 200 Cycles
Wire Processing: Solde
Wire Gauge: 26AWG/0.12mm²
Flammability Rating: UL94V-0 (Plastic Material)

Challenges

1. The space for small devices is limited. Traditional connectors are large in size and difficult to fit into compact installation scenarios.
2. In outdoor/carriage scenarios, there is significant vibration, and connectors are prone to loosening and poor contact.
3. The installation space on-site is limited, and connectors may be inserted incorrectly, affecting efficiency.
4. The outdoor environment has a lot of moisture and dust, and ordinary connectors have insufficient protection, resulting in high failure rates.

Positioning

TX-2 (3A) is a signal connector designed for small devices. It emphasizes miniaturization, quick locking and IP66 protection, aiming to address the pain points of device miniaturization and unstable connections and inconvenient installation in harsh environments. It is suitable for signal transmission requirements in scenarios such as electric two-wheelers and smart devices.

Features

1. Compact and efficient design
Function: Miniaturized structure, suitable for narrow spaces
Advantages: Small size, no additional space occupation by the device

Benefits: Meet the requirements of miniaturized device design, making terminal products thinner and lighter


2. 360° Blind Insertion + Quick Locking
Function: Directionless blind insertion design + quick locking structure
Advantages: Supports any angle insertion and disconnection, anti-dazzle and anti-reinsertion, stable connection

Benefits: Significantly reduces the error rate of installation, improves on-site installation efficiency, and reduces after-sales rework


3. IP66 Waterproof and Dustproof Protection
Function: Encapsulated design with IP66 protection level
Advantages: Effectively blocks water vapor and dust from entering

Benefits: Can work stably in outdoor and vehicle environments, reducing the risk of faults


4. Anti-vibration Stable Connection
Function: Optimized structure, excellent anti-vibration performance

Benefits: Long-term use ensures reliable connection, reducing maintenance costs


5. Compliant and Environmentally Friendly Materials
Function: Materials comply with RoHS/REACH/HF/CP65 standards
Advantages: Free of harmful substances, environmentally friendly and safe
Benefits: Meet global customers' environmental compliance requirements and adapt to export markets

Applications

・ Signal transmission for electric two-wheelers and vehicle lights
・ Small industrial equipment
・ Smart instruments
・ Low-power outdoor devices
