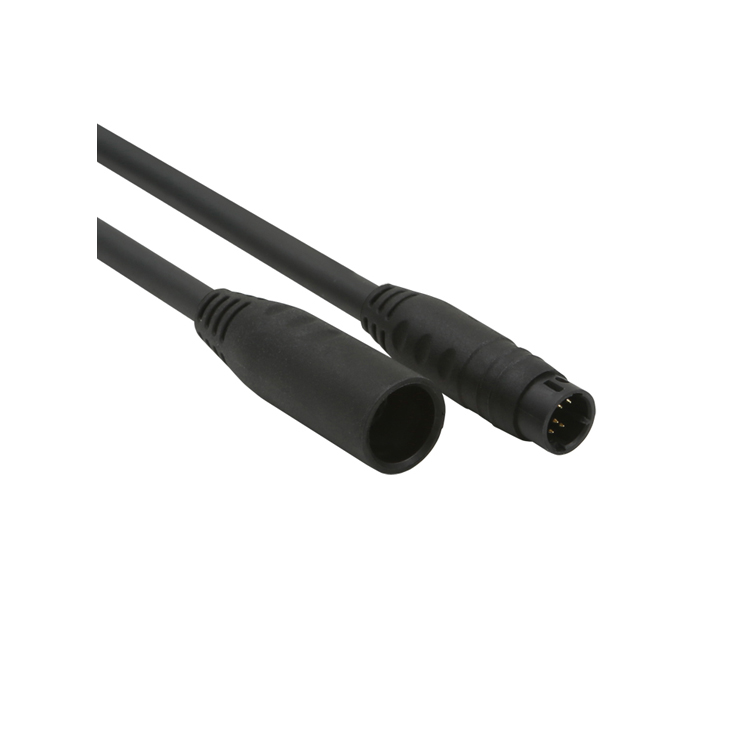

Dream 11 Pin (1.5A)

Information connectors for diverse operating conditions.

Advantages
● Quick connect/disconnect
● Compact size
● Overmolded – clean & flexible
● RoHS & REACH compliant

Specifications Challenges Positioning Features Applications FAQ Related

Specifications

Rated Voltage: 48V AC / 60V DC
Rated Current: 2A
Withstand Voltage: 250V AC
Insulation Resistance: 20MΩ at DC 500V
IP Rating: IP67 Mated
OperatingTemperature: -25°C to 85°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 200 Cycles
Wire Processing: Solde
Wire Gauge: 26AWG/0.12mm²
Flammability Rating: UL94V-0 (Plastic Material)

Challenges

Battery modules need multi-channel temp/voltage BMS sampling; split wiring is tangled; internal space is tight. A high-density multi-pin connector is needed to centralize sampling signals.

Positioning

Dream11 is a high-density multi-pin signal connector for battery module BMS sampling.

Features

The Dream11 consolidates eleven signal contacts into one high-density connector specifically engineered for multi-channel BMS voltage and temperature sampling inside lithium battery packs, replacing tangled bundles of discrete wires and individual connectors with a single, organized interface.


Its polarized housing and terminal position assurance features ensure correct mating and prevent pin damage during high-volume assembly, while the compact footprint preserves valuable module real estate, resulting in dramatically cleaner internal wiring, reduced manual wiring errors and rework, faster module assembly throughput, and more accurate, dependable battery monitoring data throughout the pack service life.

Applications

Li-ion PACK BMS, ESS module, E2W multi-cell pack, BMS board link
