In outdoor lighting, AGVs, and industrial automation, connectivity systems are exposed to rain, high humidity, dust, and changing temperatures. When conventional connectors lack sufficient protection, moisture and dust can enter the connection interface, potentially leading to short circuits, contact corrosion, and reduced connection reliability. The result can be unplanned downtime and higher maintenance costs.

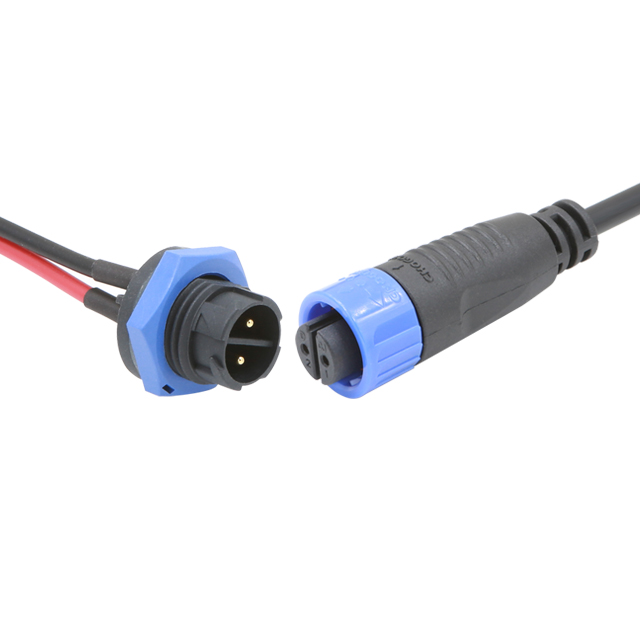

The Standard 2pin Waterproof Connector is designed to address these challenges. With IP67 protection, it helps prevent water and dust ingress, providing reliable power connectivity for outdoor and mobile equipment.

The Standard 2pin is a high-performance industrial waterproof connector featuring robust environmental protection, wide-temperature resistance, high durability, certified compliance, and broad application compatibility. It supports a wide range of applications, including IoT, outdoor lighting, energy storage, industrial automation, marine equipment, smart gardening equipment, robotic AGVs, and drones, addressing key connectivity challenges in harsh outdoor conditions, extreme temperatures, frequent mating and unmating during maintenance, and compliance-driven industrial equipment production.

IP67 Protection + Wide Temperature Range for Reliable Outdoor Connectivity

Designed for outdoor lighting, solar trackers, and field energy storage, the Standard 2pin features IP67 protection against water and dust ingress. Its -40°C to 105°C operating range supports reliable connectivity across demanding temperature and moisture conditions.

Stable Electrical Performance + 500 Mating Cycles for Mobile Equipment

The Standard 2pin supports a 10A rated current and 300V rated voltage for AGVs, industrial robots, electric gardening tools, and other low- to medium-power equipment. With 500 mating cycles, it supports frequent connection and maintenance operations.

Dual UL Certifications + Standardized Wiring for Safer Integration

Certified to UL1977 and UL2238 and designed for 18 AWG wire, the connector supports standardized installation across industrial applications. This helps simplify field wiring, reduce installation errors, and improve overall project efficiency.

IoT, Outdoor Lighting, Solar Trackers, Energy Storage, Electric Gardening Tools, Robotics, AGVs, Drones, Marine Equipment, and Industrial Automation.

Outdoor Landscape Lighting | Reliable Connectivity for Long-Term Outdoor Operation

Customer Challenge

The customer’s LED landscape lighting systems are deployed in commercial buildings, parks, and public spaces, where connectors are continuously exposed to rain, moisture, and dust. The lighting equipment must also withstand seasonal temperature variations while supporting installation and maintenance requirements.

Solution

The Standard 2pin Industrial Waterproof Connector provides IP67 protection to help minimize water and dust ingress at the connection interface. Its -40°C to 105°C operating temperature range supports varying outdoor conditions, while the 500-cycle mechanical mating life enables repeated connection and disconnection during installation, commissioning, and maintenance.

Application Value

By combining environmental protection, wide-temperature performance, and mating durability, the solution helps improve connectivity reliability in outdoor lighting systems, reduce environment-related connection failures, and minimize long-term on-site maintenance requirements.
