Energy storage systems are often installed outdoors or inside enclosed enclosures, where exposure to moisture, dust, and temperature variations can affect connection reliability. Conventional connectors may experience contact failure or reduced insulation performance under these conditions.

The FAC 3pin connector features IP67 protection to support reliable connections in demanding environments. Its dual wiring options provide greater compatibility with different manufacturing processes and on-site installation requirements.

A snap-lock design enables quick and straightforward assembly, helping improve installation efficiency while reducing installation and maintenance costs.

A reliable and flexible connection solution for demanding energy storage applications.

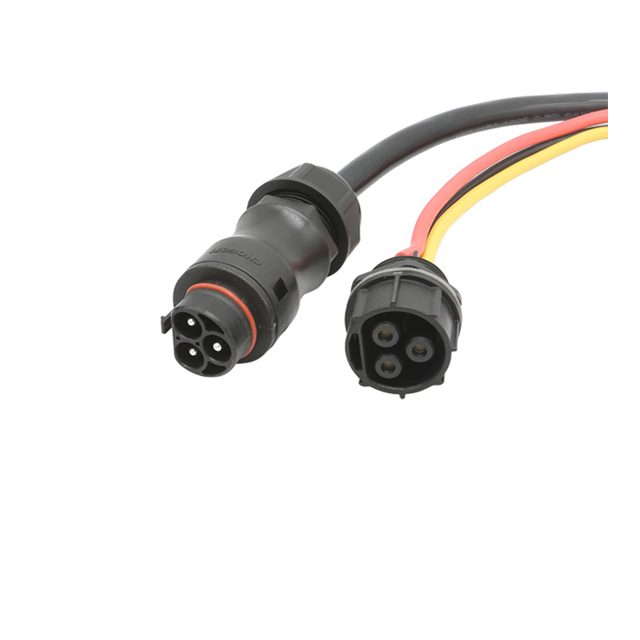

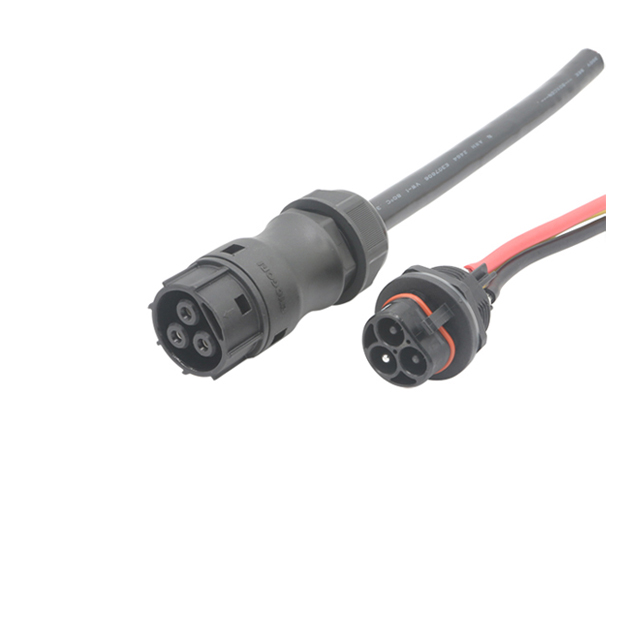

The FAC 3pin is a waterproof wire-to-board connector featuring an assembled snap-lock design, developed to support reliable board-side connections in energy storage systems. It is rated for 35A current, 690V voltage, and IP67 protection, with dual wiring options for greater installation flexibility.

Designed for the connection requirements of energy storage equipment operating in demanding environments, the FAC 3pin provides reliable power transmission and environmental protection while supporting different equipment designs and assembly processes.

1. IP67 Protection for Demanding Environments

The FAC 3pin provides IP67 protection when mated and IPXXB touch protection when unmated, with an operating temperature range of -40°C to 105°C.

Designed to address environmental conditions such as moisture, dust, and temperature variations, the connector provides reliable environmental protection and stable connectivity for energy storage equipment. This helps reduce the risk of connection failure and long-term maintenance costs.

2. Dual Wiring Options for Flexible Assembly

The FAC 3pin features an assembled snap-lock design and supports both soldering and screw-lock wiring methods. Compared with threaded locking designs, the snap-lock structure simplifies assembly and helps improve installation efficiency.

The dual wiring options support different production-line and on-site installation processes, providing greater flexibility for energy storage equipment assembly and field installation across a range of operating scenarios.

3. UL and TUV Certifications for Reliable Performance

The FAC 3pin has obtained UL2238 and TUV certifications and supports a 100-cycle mating life, with performance requirements aligned with international safety standards.

Professional certification and performance validation help reduce product compliance risks and provide reliable connection support for the long-term operation of energy storage equipment.
