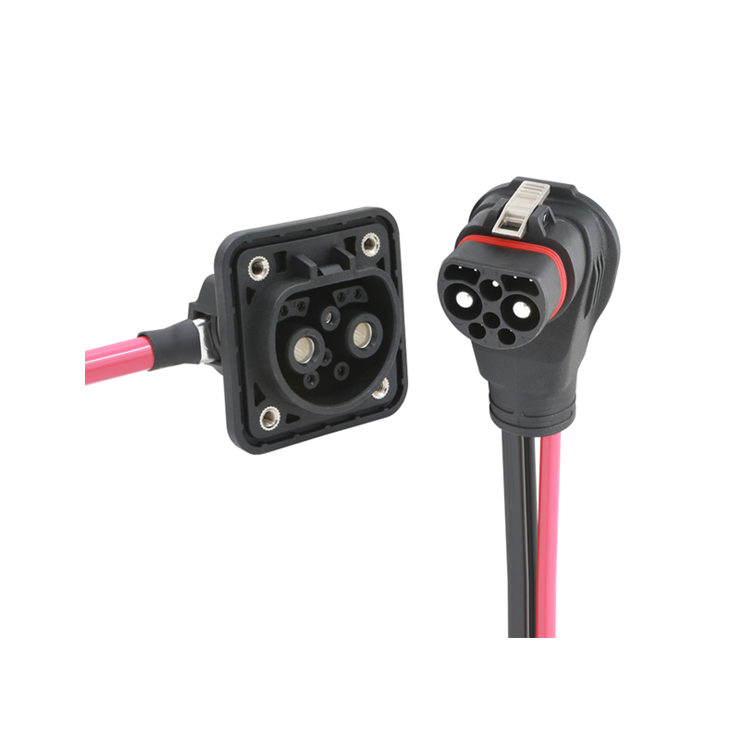

Banga X100 2+1+7 Pin (100A+25A+5A)

Banga X100 is a 630V DC high-voltage, high-current connector platform for electric motorcycles and battery-swapping systems. It has a 100A + 25A + 10A multi-contact configuration, supporting charging, discharging, and signal communication. Provide electrical connections for charging and discharging of electric motorcycles.

Advantages
● IPXXB touch protection
● Low-profile 90° cable exit
● Dedicated 25A charging pin
● Independent signal pin (anti-corrosion)
● RoHS & REACH compliant

Specifications Challenges Positioning Features Applications FAQ Related

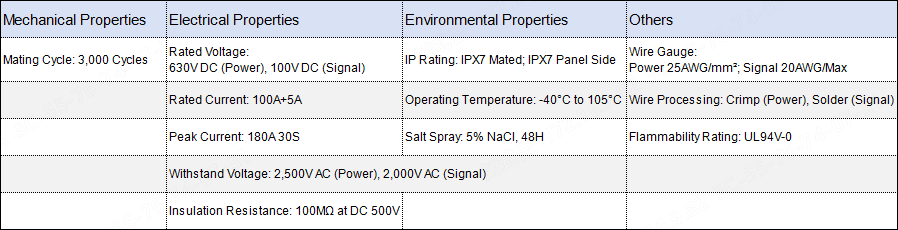

Specifications


Challenges

As demand continues to grow for simpler wiring harnesses and more efficient use of space in electric motorcycles and shared battery-swapping systems, power, signal, and charging functions are often handled by separate connector sets. This can result in long, complex harnesses, more assembly steps, and multiple sealing points. Inside a swappable battery pack, space is limited, and the high mating profile of conventional connectors can be difficult to accommodate.


The market needs a high-voltage, high-current solution that combines charging, discharging, and signal communication in a single connector, fits within a low installation profile inside the battery box. Banga X100 was developed to address these needs.

Positioning

Banga X100 is a 630 V DC high-voltage, high-current connector platform for electric motorcycles and battery-swapping systems. Its 2×100A + 1×25A + 7×10A multi-contact configuration, ≤40mm mated height, and ≤32mm height inside the battery box support charging, discharging, and signal communication.

Features

Charging, discharging, and signal communication in one connector: Two 100A discharge contacts, one 25A charging contact, and seven 10A signal contacts are integrated into a single compact connector.


630 V high-voltage, high-current platform: Designed for the electrical architectures of high-speed, high-power electric motorcycles, with two 100A discharge contacts, one 25A charging contact, and seven 10A signal contacts.


Compact layout: Both plug and receptacle support 90° cable-exit configurations. The receptacle’s height inside the battery box is ≤32mm, and the mated height is ≤40mm, helping free up space for battery capacity and vehicle packaging.


Intuitive keying and dedicated signal pins: A D-shaped anti-mismating profile helps prevent incorrect connection.  Dedicated signal pins also help prevent electrochemical migration between power terminals.


Industrial-grade reliability: IPX7 protection when mated, UL 94 V-0 flame retardancy, 48-hour salt-spray resistance in 5% NaCl, and a mechanical life of 3,000 mating cycles.

Applications

● High-Performance Electric Two- and Three-Wheelers
● Battery Charging and Discharging Systems
● Removable and Swappable Battery Systems
