Rated Voltage: 120V DC(power), 30V DC(signal)
Rated Current: 25A+2A
Peak Current: Power 180A 30S
Withstand Voltage: 2,000V AC(power), 500V AC(signal)
Insulation Resistance: 100MΩ at DC 500V
IP Rating: IPX5
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 10,000 Cycles
Wire Gauge: Power 12AWG/Max, Signal 20AWG/Max
Wire Processing: Crimp
Flammability Rating: UL94V-0

With the rapid growth of light electric vehicles, the market requires a standardized, compact, and reliable DC charging interface that enables charging ecosystem compatibility, space-efficient integration, and localized manufacturing. ES-CT6 was developed to address these challenges and accelerate the adoption of safe and scalable LEV charging solutions.

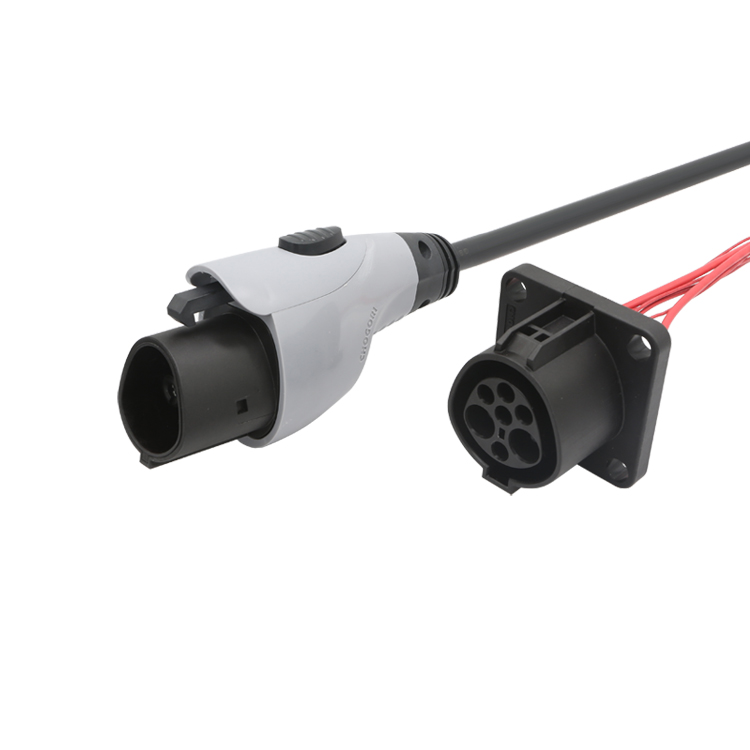

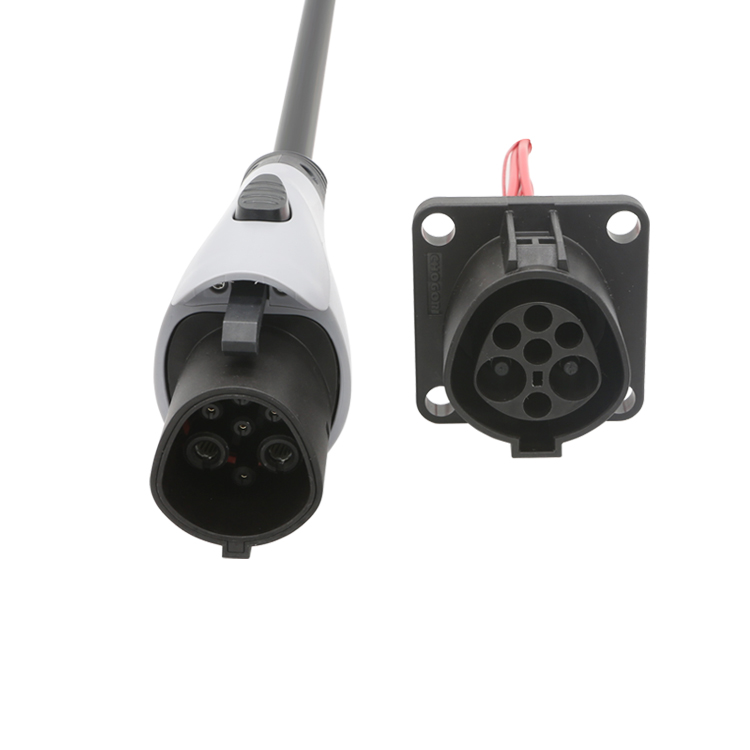

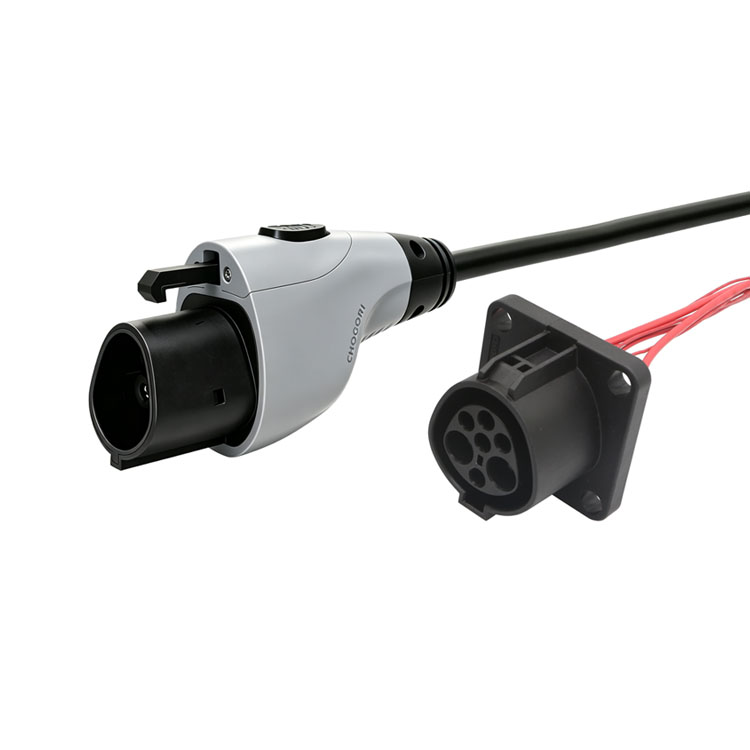

ES-CT6  portable charging gun is a compact DC charging gun designed for light electric vehicles (LEV), including electric two-wheelers and three-wheelers. Compliant with IEC 62196-6 and IS 17017-2-6 requirements, it enables compatibility with existing EV charging infrastructure while supporting localized cable assembly through CKD design. With its compact form factor, high durability, and reliable connection performance, ES-CT6 helps OEMs build safe, standardized, and scalable charging solutions for emerging EV markets.

● Compliant with IEC  62196 – 6
● In line with IS 17017 (Part :2, Sec: 6)
● Complete knock down (CKD) design for localized cable assembly
● Compact design, can be easily accommodated in the under-seat storage
● Advanced product quality planning to ensure reliability.

ES- CT6 is developed to meet diverse needs from the market and intended to target the below segments of customers.
E – 2W, E – 3 W, Charging Infra Companies
