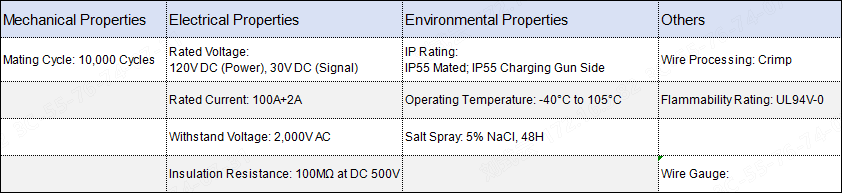

Rated Voltage: 120V DC (Power), 30V DC (Signal)
Rated Current: 100A + 2A
Peak Current: Power 180A 30S
Withstand Voltage: 2,000V AC (Power), 500V AC (Signal)
Insulation Resistance: 100MΩ at DC 500V
IP Rating: IP55, unmated: IP55 (without cap)
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 10,000 Cycles
Wire Processing: Crimp
Flammability Rating: UL94V-0

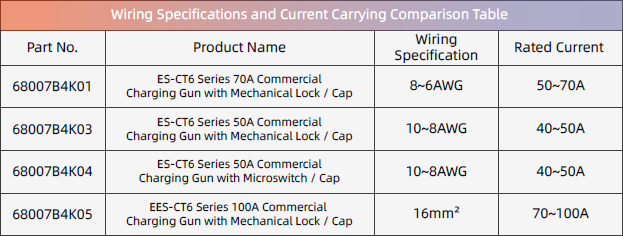

Wire Gauge:

With the rapid growth of LEV commercial operations, battery swapping, and public charging applications, the market requires a standardized, ecosystem-compatible, high-current DC charging interface with long-term reliability. Existing solutions often face challenges such as inconsistent interface standards, limited interoperability, and insufficient performance under high-frequency charging, repeated plugging, and outdoor operating conditions.

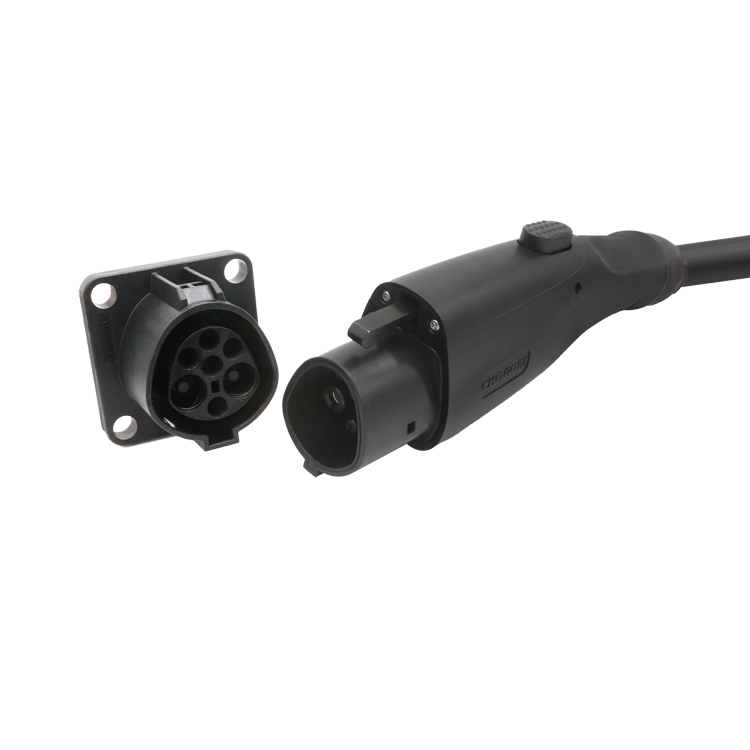

Based on the IEC 62196-6 Type 6 interface standard, ES-CT6 Commercial Version is designed for charging operators, battery swapping companies, and LEV charging infrastructure providers. It delivers a standardized and reliable DC fast-charging connection solution with 100A high current capability, 10000 high mating durability, and robust environmental performance, enabling efficient and reliable charging for electric two-wheelers, three-wheelers, and commercial LEV applications.

ES- CT6 is developed to meet diverse needs from the market and intended to target the below segments of customers .
E – 2W
E – 3 W
Charging Infra Companies
