Type C

This Type C connector features a Locking Bayonet mechanism, supporting a rated current of 5A and rated voltage of 5V. It offers IPX7 protection when used with a cover, supports up to 10,000 mating cycles, operates across a temperature range of -40°C to 85°C, uses soldering termination for wire processing, and accommodates wire gauges from 30~28AWG.

Advantages
● Single-Stack and Dual-Stack Type C Options
● 10Gb/s High-Speed Data Transmission
● IP Rating: IPX7 protection with cover
● RoHS & REACH compliant

Specifications Challenges Positioning Features Applications Cases Related

Specifications

Rated Voltage: 5V
Rated Current: 5A
IP Rating: IP67 Mated
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 10,000 Cycles
Wire Processing: Solder
Wire Gauge: 28~30AWG
Flammability Rating: UL94V-0

Challenges

As industrial equipment continues to evolve toward higher data speeds and smarter connectivity, connectors must deliver not only fast performance but also long-term reliability in demanding environments. In response to these needs, Chogori proudly introduces its new Industrial-Grade Type C Connector Series, designed to provide secure, high-performance data and power transmission for next-generation industrial applications.

Positioning

Type C Connector is a connector designed for compact, high-reliability electronic devices. It adopts a bayonet lock structure, supports 5V/5A rated power supply, and delivers IPX7 waterproof rating (with protective cover). It helps customers in robotics, smart agricultural equipment, golf carts, lawn mowers and fleet management industries solve core pain points including high-density signal transmission, water and dust resistance in outdoor and harsh environments, and connector loosening caused by frequent and long-term plugging and unplugging.

Features

1. 10Gb/s High-Speed Data Transmission
The Chogori Type C series supports data transfer rates of up to 10Gb/s, enabling stable and efficient communication for high-bandwidth applications such as imaging, sensor data acquisition, and real-time control systems. This high-speed capability ensures faster response times and improved system performance.

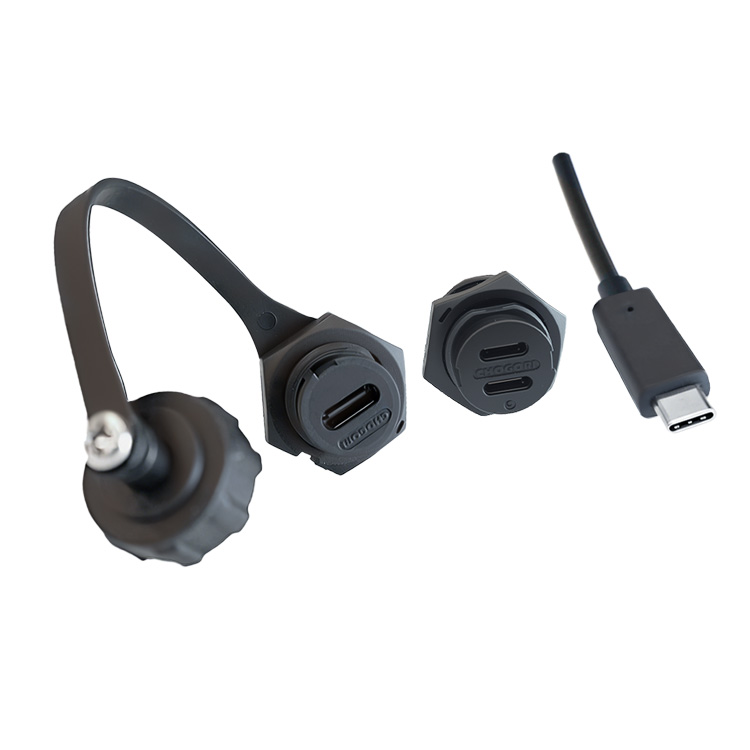

2. IPX7 Waterproof Design with Protective Cap
Engineered for outdoor and harsh-environment use, the connector features a protective waterproof cap that provides IPX7 protection in the unmated condition. This design effectively prevents water ingress and environmental contamination, significantly enhancing durability and long-term reliability.

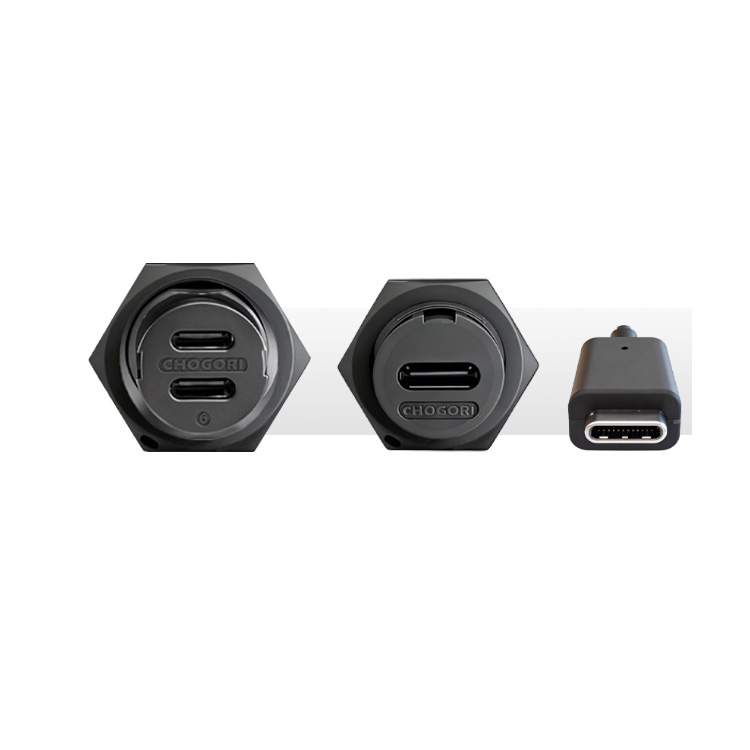

3. Single-Stack and Dual-Stack Type C Options
To accommodate different system architectures and space constraints, the Chogori Type C series is available in single-stack and dual-stack Type C configurations. These flexible options allow higher integration density and greater design freedom for compact and multifunctional devices.
