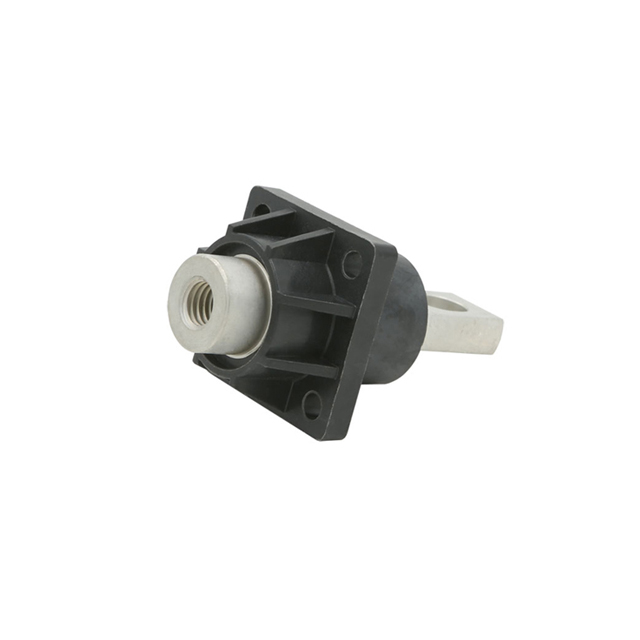

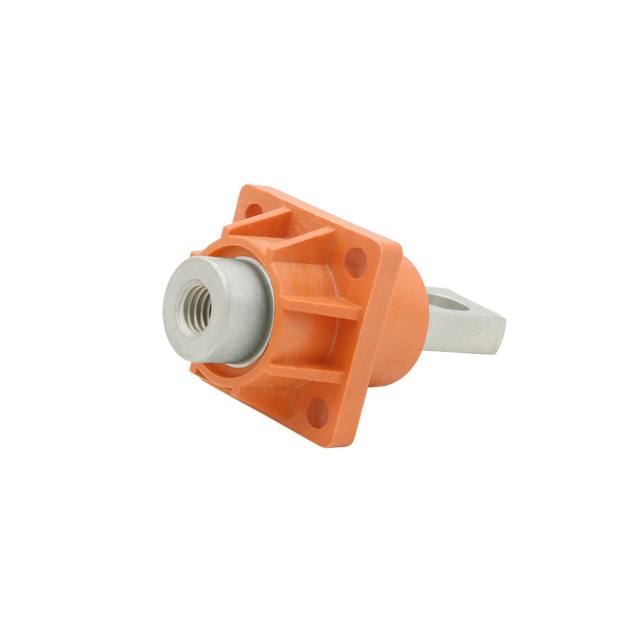

Wall Terminal(300A)

Single Pole Power Connector for ESS(Energy Storage System)

Specifications Related

Specifications

Rated Voltage: 750V
Rated Current: 300A
Withstand Voltage: 2,500V AC
Insulation Resistance: 500MΩ at DC 500V
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Wire Gauge: 75~95mm²
Flammability Rating: UL94V-0
