Specifications
Rated Voltage: 600V DC
Rated Current: 50A
Withstand Voltage: 2,200V AC
Insulation Resistance: 100MΩ at DC 500V
OperatingTemperature: -20°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 10,000 Cycles
Wire Gauge: 6mm²/Max
Wire Processing: Crimp
Flammability Rating: UL94V-0
Challenges
Space inside EV motorcycle battery packs is limited, requiring compact connectors that deliver reliable high-current transmission. Separate male and female components also increase inventory complexity. CP50 addresses these needs with a compact 50A current rating and genderless design.
Positioning

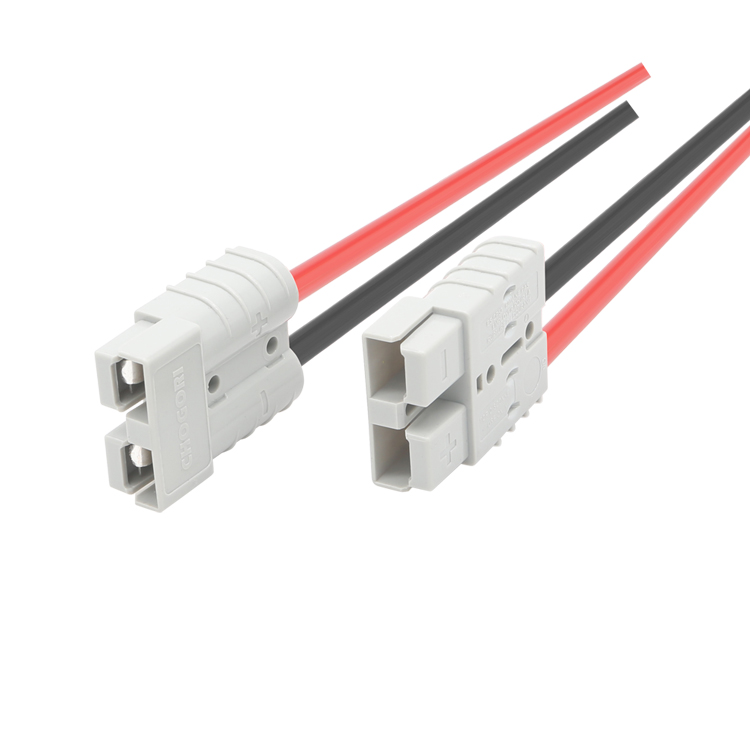

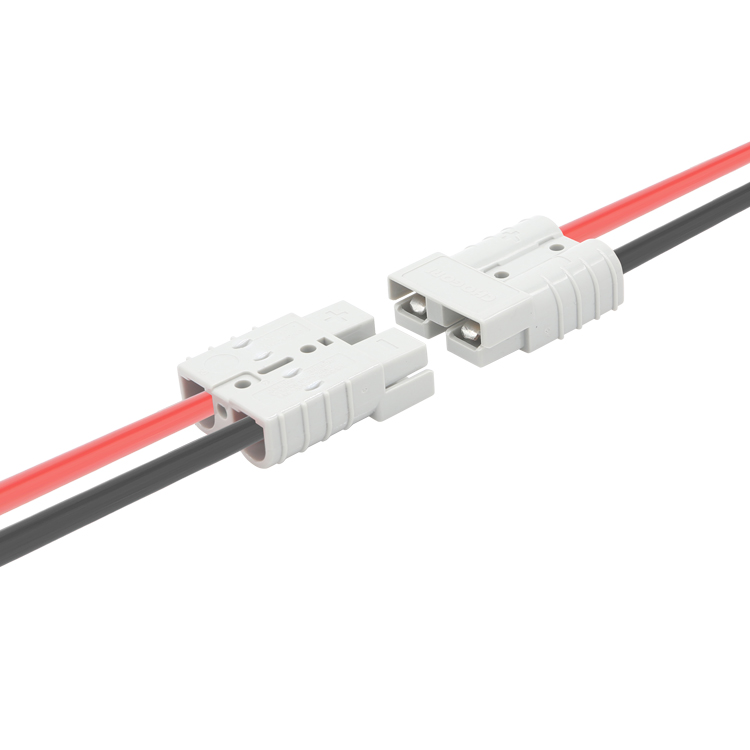

CP50 is a compact, genderless 50A in-line connector that provides a proven and versatile power connection option within Chogori’s complete connectivity portfolio.
Features
Low-Profile Design: Saves installation space
50A Current Rating: Compact, high-current
Genderless Design: Fewer parts, less inventory
Applications
EV Motorcycle
EV Charging
Lawn & Garden
Industrial & Instrumentation
Q
LED street lights installed in coastal areas require connectors with additional UV resistance and anti-aging treatment. Is this necessary?
A
Yes. Coastal areas are exposed to strong UV radiation and high salt-spray concentrations, so connectors should use UV-resistant and flame-retardant materials, such as PA66 nylon housings.
Chogori’s M15 waterproof connectors are designed for outdoor LED street lighting and can withstand heavy rain, vibration, and UV exposure, making them suitable for applications such as highways and rural roads. The materials are sourced from high-quality plastics with UL Yellow Card certification, helping ensure reliable outdoor performance for 5–10 years.
Q
What are the differences in test conditions between IP67 and IP68 for waterproof connectors? Does IP69K protection also support high-pressure and high-temperature water-jet testing?
A
IP67 protects against water ingress when immersed in fresh water up to 1 meter deep for 30 minutes, providing protection against accidental immersion.
IP68 is designed for more demanding immersion conditions. It can withstand prolonged immersion at a depth of 1 meter, with the specific duration defined by the manufacturer and potentially lasting 7 days or longer.
IP69K and IP68 involve different protection tests. IP69K is designed to withstand high-pressure, high-temperature water jets, but it does not fully cover immersion protection.
Some Chogori connectors are available with IP69K protection.
Q
What are the specific rated current and voltage ranges of the Large Pro Series connectors?
A
The Large Pro Series supports up to 300V and 50A, offering high reliability and user-friendly design. It is also fully compatible with the existing Large 2+4 Series.
Q
Is there an integrated connector recommended for outdoor LED displays that can transmit both power and signals simultaneously?
A
We recommend an integrated power and signal solution, such as the Large Series multi-pin connectors, which combine power delivery and signal transmission in a single connector for fast, one-step installation.
The Standard and Middle Series also support both power supply (e.g., 300V/20A) and data transmission, while offering IP67 protection and secure thread-locking or push-lock mechanisms.
Q
My electric motorcycle charging interface needs to support 300V/50A. Which Chogori connector series should I choose?
A
We recommend the Large Pro Series. Designed for high-power, safe, and reliable charging and discharging, the series supports 300V and 50A, making it suitable for electric motorcycles operating in challenging road and varying weather conditions. It is also fully compatible with the Large Series.
