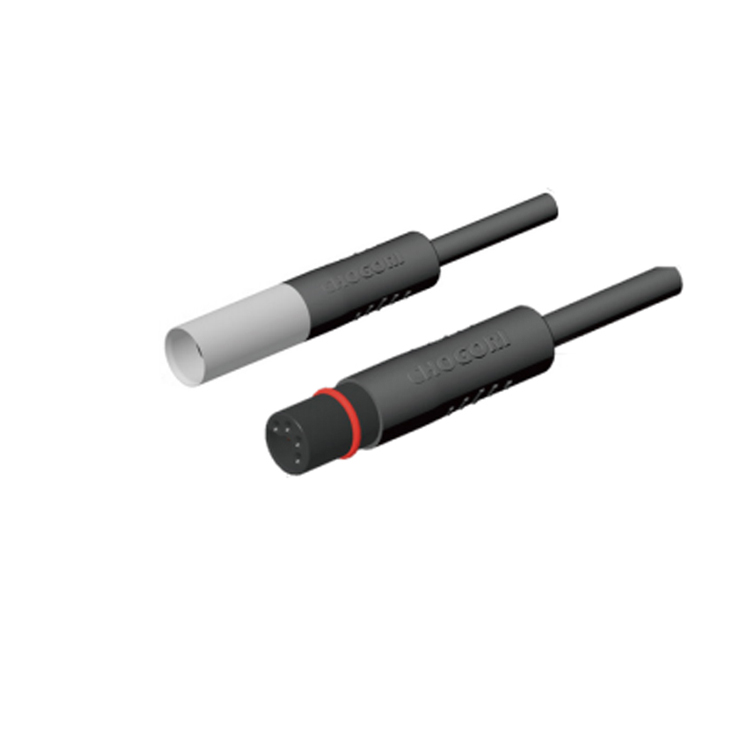

Pico A 4-6 Pin (2A)

For Signal Use, Cable to Cable Solution

Advantages
● Quick lock
● Small and compact
● Poka-yoke design on contact surface
● IP67 robust overmolded type
● Stable connection in vibrating environment
● RoHS & REACH compliant

Specifications Challenges Positioning Features Applications FAQ Related

Specifications

Rated Voltage: 48V AC / 60V DC
Rated Current: 2A
Withstand Voltage: 500V AC
Insulation Resistance: 20MΩ at DC 500V
IP Rating: IP67 Mated
OperatingTemperature: -25°C to 80°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 100 Cycles
Wire Processing: Solde
Wire Gauge: 28AWG/0.08mm²
Flammability Rating: UL94V-0 (Plastic Material)

Challenges

Small-medium Li-ion needs more BMS sampling pins; limited space; multi-pin terminals easily misalign. A compact multi-pin integrated connector is needed.

Positioning

Pico 4-6P is a micro multi-pin connector integrating 4-6 pins for power and BMS sampling signals.

Features

Offering 4, 5, and 6 contact options within a shared ultra-compact housing, the Pico 4-6P consolidates auxiliary power and multi-channel BMS voltage/temperature sampling into a single micro connector, replacing messy bundles of discrete wires and freeing critical module interior space; the unified tooling platform reduces customer SKU count and inventory overhead, while the polarized keying and terminal locking features guarantee error-free, repeatable assembly and prevent contact fretting under vibration, resulting in cleaner module layouts, lower procurement and stocking costs, and more dependable battery management signal integrity over the vehicle lifetime.

Applications

Small-medium Li-ion BMS, portable ESS, light E2W auxiliary board, home ESS module
