Current category product name

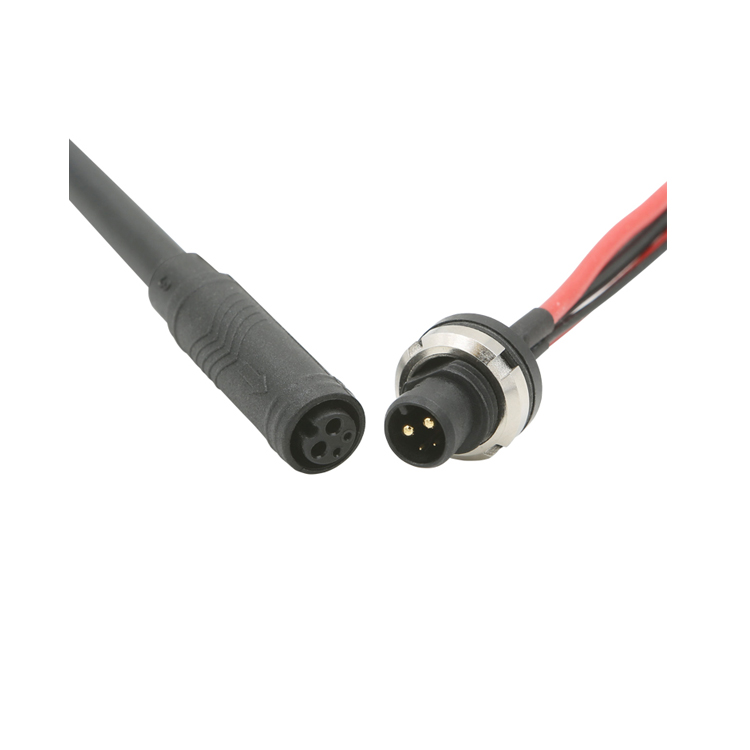

Micro-A 2+2 Pin (10A+2A)

For Motor Use, Cable to Panel Solution, Small motor, micro control board-wire

Advantages
● Small and compact
● Power & signal hybrid combination
● IP66 robust overmolded type
● Durable, electrically and mechanically
● Stable connection in vibrating environment
Download Solution Inquiry Buy Now

Specifications Challenges Positioning Features Applications FAQ Related

Specifications

Rated Voltage: 48V AC / 60V DC
Rated Current: 10A+2A
Withstand Voltage: 700V AC
Insulation Resistance: 200MΩ Min at 500V DC
IP Rating: IP66 Mated
Operating Temperature: -25°C to 80°C
Salt Spray: 5% NaCl, 48H
Mating Cycle: 200 Cycles (Without load)
Wire Gauge: 18AWG/0.82mm²+26AWG/0.12mm²
Flammability Rating: UL94V-0

Challenges

Small device board-wire needs 2 power + 2 signals; limited PCB area; miniaturized board component desired. A micro board-to-wire connector for compact power+signal is needed.

Positioning

Micro-A 2+2 is a micro board-to-wire connector with 2 power + 2 signals, ultra-compact.

Features

The Micro-A 2+2 is an ultra-compact board-to-wire connector integrating two 10A power and two 2A signal contacts into one of the smallest footprints in its class, specifically designed for compact motor drives and miniaturized control boards where PCB space is at an absolute premium.


Its precision SMT board end and polarized wire-side latch enable reliable, repeatable mating without damage, while the integrated hybrid architecture removes the need for two discrete connectors, enabling smaller and lighter device designs, reducing board area consumption, and simplifying assembly in space-constrained electric two-wheeler and portable power applications.

Applications

Small Li-ion BMS, portable ESS control board, small IoT battery, power tool control board

FAQ

Q

Can Chogori provide remote video support or send technical personnel for on-site assistance?

A

Chogori provides comprehensive pre-sales and after-sales technical support throughout the entire project lifecycle. We offer remote technical assistance via phone calls, video conferences, and other online channels. For large-scale projects or complex technical issues, professional engineers can be arranged for on-site support.


Customers can contact us through multiple channels, including our website and technical support hotline, to receive timely assistance and effective solutions.

Q

Are Chogori connector samples provided free of charge? What is the process and lead time for requesting samples?

A
Chogori supports free sample requests for potential customers, subject to review by the sales or technical support team.

Process: Contact the sales team → Provide the required product model and specifications → Submit project or quotation information → Upon approval, the samples will be shipped.

The typical sample shipping lead time is 2–7 business days, depending on the model and sample availability.
Q

What is the minimum order quantity (MOQ)? Can small-batch orders be supported for initial trial production?

A

As a manufacturer with scalable production capabilities, Chogori can handle MOQ requirements flexibly based on the product series and customization needs. Most standard models support small trial-production batches, with samples available free of charge or for a nominal fee.


For specially customized products, the minimum order quantity can be discussed based on specific requirements. We recommend contacting our sales team directly to coordinate the order quantity and production schedule.

Q

For exports to Europe, CE and RoHS compliance is required. Do you have a REACH SVHC test report available?

A
Chogori connector materials comply with RoHS and REACH environmental requirements, enabling the products to be marketed and used in Europe without compliance barriers. Customers who require a REACH SVHC test report may contact our sales or technical support team to obtain the relevant documentation.
Q

Has Chogori's connectors passed UL 1977 or UL 2238 certification?

A
Some Chogori products are UL certified, including certifications to standards such as UL 1977 and UL 2238. The company actively implements the IATF 16949 Quality Management System and maintains stringent quality management standards. For certification details and certificates for specific product models, please contact our sales team for further information.
