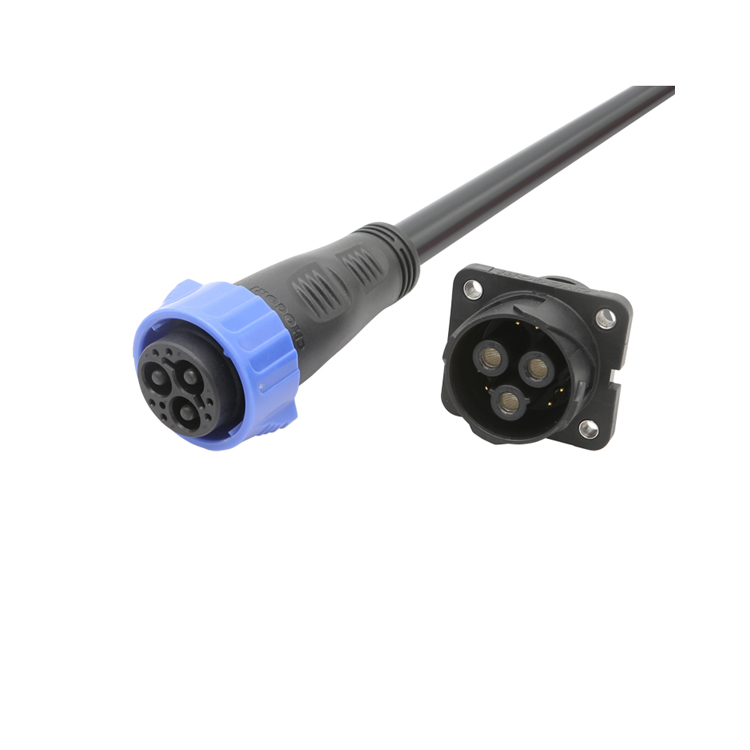

Bourbon80 3+6 Pin (90A+5A)

The Bourbon80 3+6 is a hybrid power and signal connector designed for the motor end of high-power three-phase platforms. Each power contact is rated at 90A, with a rated operating voltage of 300V AC. Provide electrical connections for charging and discharging of electric motorcycles.

Advantages
● Rotary push-pull locking for smooth insertion
● Ergonomic locking ring for easy operation
● IPXXB touch protection rating
● Audible click confirmation upon locking
● RoHS & REACH compliant

Specifications Challenges Positioning Features Applications FAQ Related

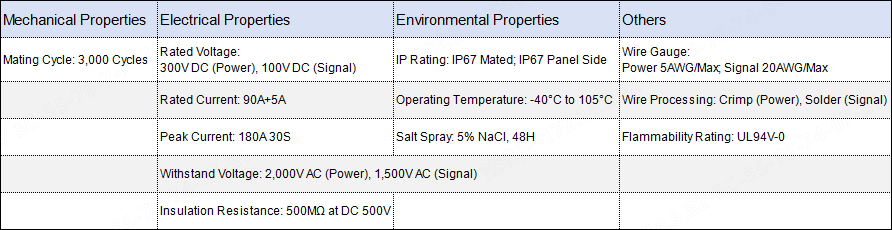

Specifications


Challenges

High-power three-phase motor platforms—including electric motorcycles, electric lawn mowers, electric ATVs, and electric off-road vehicles—require connections for both three-phase power and signal feedback, such as encoder signals, at the motor end. Using separate connectors for power and signals increases the number of interfaces and complicates wiring. Meanwhile, elevated temperatures around the motor place greater demands on connector current-carrying capacity, temperature resistance, and protection.

Positioning

The Bourbon80 3+6 is a hybrid power and signal connector designed for the motor end of high-power three-phase platforms. It integrates three high-current power contacts and six signal contacts in one connector to connect the motor’s three-phase power lines and signal feedback lines. Each power contact is rated at 90A, with a rated operating voltage of 300V AC.

Features

Integrated 3 Power + 6 Signal Contacts
Power and signal contacts are integrated in one connector, providing a single connection for motor power lines and signal feedback lines, such as encoder signals, while simplifying interfaces and wiring.

90A per Contact, 300V AC Rated Operating Voltage
Each power contact is rated at 90A. The rated operating voltage is 300V AC, and the dielectric withstand voltage is 2,000V AC. Designed for high-power three-phase motor platforms. Wire size and operating conditions should be selected according to product specifications and system design.

Audible Locking Confirmation and Assisted Unmating
An audible click confirms that the plug and receptacle are fully locked. During unlocking, the rotary ejection mechanism helps push out the plug, reducing the effort required for manual removal. The easy-to-grip locking ring is suitable for operation while wearing gloves.

Temperature Ratings for Different Connector Components
The receptacle operates from -40°C to 125°C, while the plug operates from -40°C to 105°C. The mated connector should be used according to the specifications for the complete assembly and the actual installation conditions.

IP67 Protection and Durability
The mated connector achieves IP67 protection, and the receptacle provides single-sided IP67 protection. The receptacle also provides IPXXB protection against finger access to hazardous parts.

Applications

Designed for motor-end power and signal connections in high-power three-phase platforms, including electric motorcycles, electric lawn mowers, electric ATVs, and electric off-road vehicles.
