Mating Cycle：5,000 Cycles |
Voltage Rating：72V DC |
Operating Temperature：-40°C to 105°C |
|
Pullout Force：<100N |
Current Rating：30A + 2A |
IP Rating：IPX7 Panel Side |
|
Wire Processing：Solder |
Withstand Voltage：1,200V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：Power 12AWG/ Max Signal 22AWG/ Max |
Insulation Resistance：500MΩ at DC 500V |
Flammability Rating：UL94V-0 |
Products

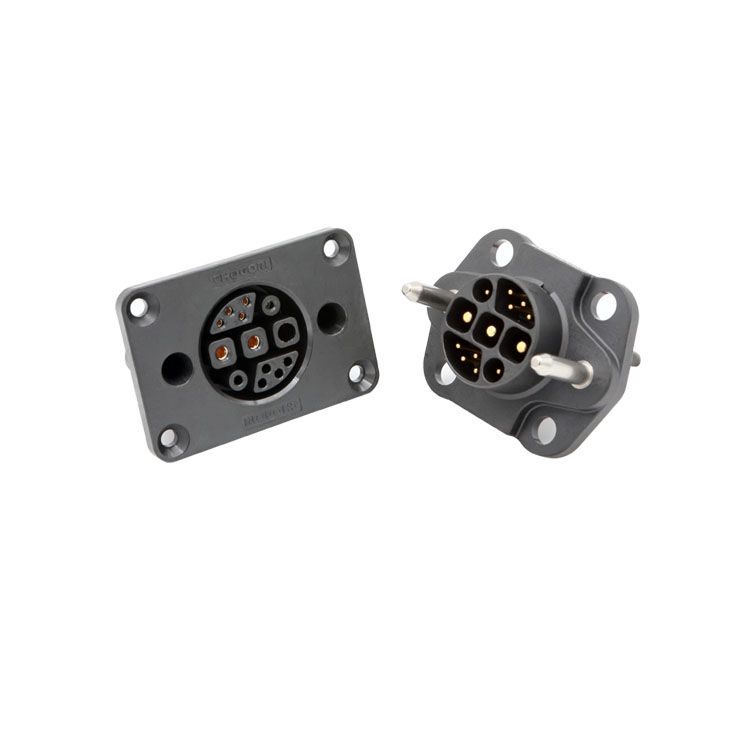

FC26 2+5 (30A+2A)
Applications: Hybrid Connector for Residential Energy Storage
Advantages
• Vehicle side with self-floating
• Support 180° bi-direction mating
• Battery side: IPXXB
• The end of vehicle-side with overmolding for waterproof protection
• RoHS and REACH compliant
