Mating Cycle：5,000 Cycles |
Voltage Rating：72V DC |
Operating Temperature：-40°C to 105°C |
|
Pullout Force：<100N |
Current Rating：40A + 5A |
IP Rating：IPX5 Mated; IPX7 Panel Side |
|
Wire Processing：Crimp |
Withstand Voltage：1,500V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：Power 10AWG/ Max Signal 20AWG/ Max |
Insulation Resistance：100MΩ at DC 500V |
Flammability Rating：UL94V-0 |
Background
In shared mobility and battery swapping applications, connectors must withstand frequent mating cycles while ensuring smooth connections between vehicles, batteries, and swapping stations, often in harsh outdoor environments. Conventional connectors typically suffer from limited lifespan, difficult alignment, and insufficient protection, making it challenging to achieve both high efficiency and reliability. The Chogori FC09 floating connector series effectively addresses these challenges.Technical Specifications

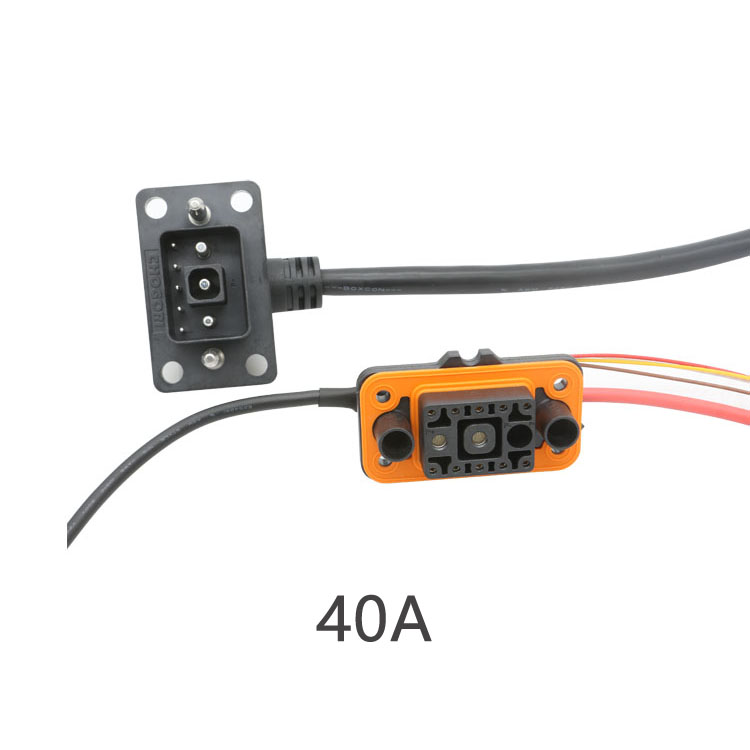

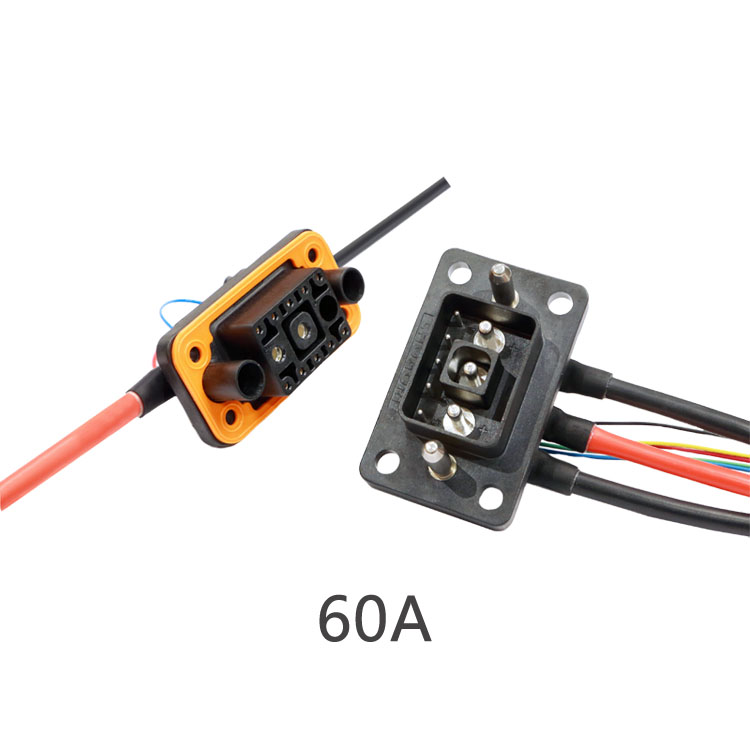

FC09 Floating Series Battery Panel Connector. Direct plug-in type with a 2+5 pin configuration. Rated current: 40A–60A; rated voltage: 72V DC. Operating temperature range: -40°C to 105°C. The battery-side interface provides single-sided IPX7 waterproof protection, and achieves IPX5 rating after mating.Supports blind-mate (reversible insertion). Mating cycle life exceeds 5,000 insertions. Supports power cables up to 8 AWG and signal wires of 20–22 AWG. Enables integrated power and signal connection between the vehicle and battery.
Product Feature

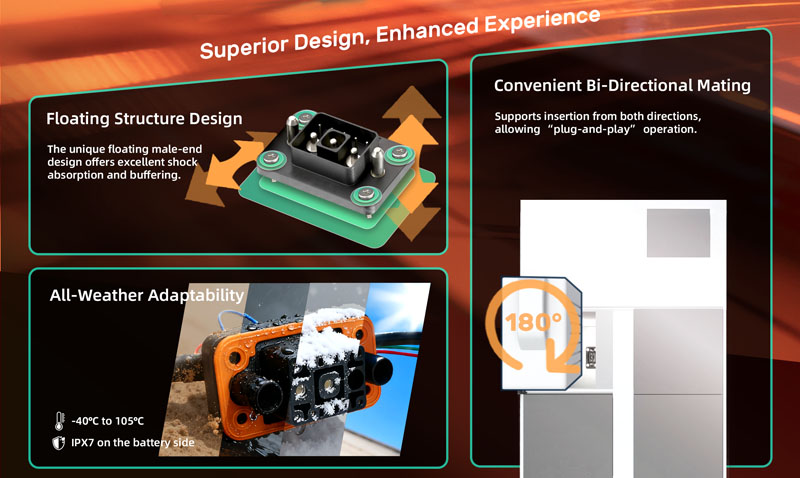

• Floating Structure Design: Floating male interface compensates for misalignment, enhances vibration resistance, and supports up to 5,000 mating cycles.• Reversible Blind Mating: No alignment required, enabling quick and efficient plug-in operation.
• All-Weather Reliability: Operating temperature from -40°C to 105°C; protection up to IPX7 (battery side), IPX6 (vehicle side, optional), IPX5 (mating side, optional) .
• Push-Pull Mating: Direct plug-and-play without locking or unlocking actions, ideal for high-frequency use.
FC09 Application

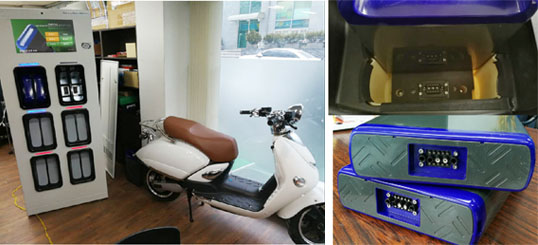

The FC09 is suitable for both consumer (ToC) daily charging/discharging and commercial (ToB) shared battery swapping and robotic battery swapping systems. It serves global markets including China, North America, East Asia, Southeast Asia, Africa, and South America, providing a high-power, safe, and reliable connection solution for the rapidly growing e-mobility industry.
