Rated Voltage: 48V AC / 60V DC
Rated Current: 3.5A+2A
Withstand Voltage: 500V AC
Insulation Resistance: 20MΩ at DC 500V
IP Rating: IP66 Mated
OperatingTemperature: -25°C to 80°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 200 Cycles
Wire Processing: Solde
Wire Gauge: 22AWG/0.32mm²+24AWG/0.2mm²
Flammability Rating: UL94V-0 (Plastic Material)

1. The space for small devices is limited. Traditional connectors are large in size and difficult to adapt to compact installation scenarios.
2. In outdoor/carriage scenarios, there is significant vibration and harsh environment, making connectors prone to loosening and poor contact.
3. The installation/maintenance space is limited, and the plug-in and unplugging operation is inconvenient, resulting in low efficiency.
4. When used outdoors, the waterproof and dustproof grade is insufficient, making it susceptible to moisture and dust, leading to a high failure rate.

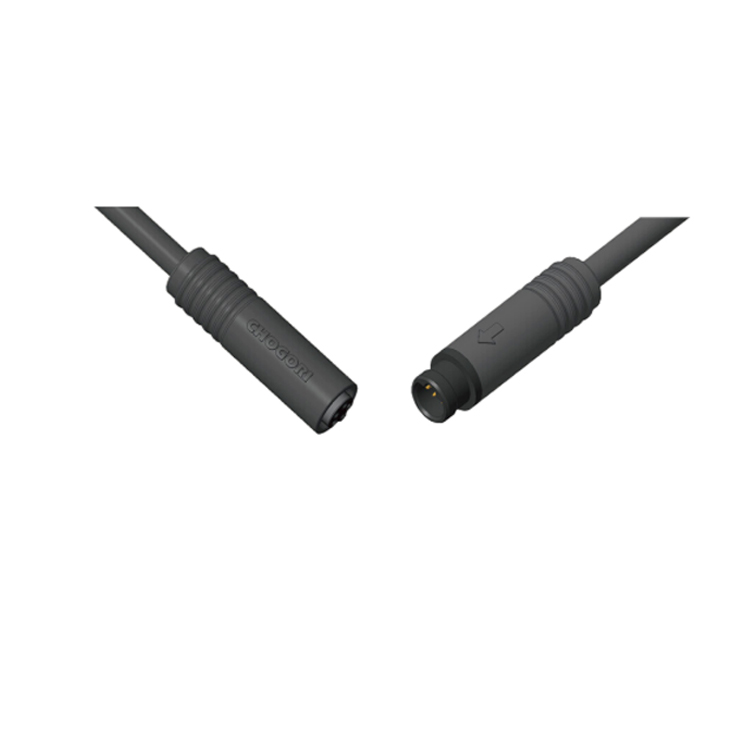

The Micro D 2+3 is a signal/power integrated connector specifically designed for miniaturization and high-reliability scenarios. It features a quick locking mechanism and IP66 protection design, addressing the issues of equipment miniaturization and unstable connections as well as inconvenient installation in harsh environments. It is suitable for signal transmission requirements in scenarios such as electric two-wheelers and small equipment.

1. Compact and efficient design
Function: Miniaturized structure, suitable for compact installation space
Advantages: Small size, no additional equipment space occupation
Benefits: Meet the requirements of equipment miniaturization design, making terminal products thinner and lighter

2. Error-proof + Quick Locking Structure
Function: Error-proof design + Quick Locking Structure
Advantages: Avoid reverse insertion, connection is fast and stable
Benefits: Reduce installation error rate, improve on-site installation efficiency, and reduce after-sales rework

3. IP66 Waterproof and Dustproof Protection
Function: Solid encapsulation design with IP66 protection level
Advantages: Can effectively prevent water and dust from entering
Benefits: Can work stably in outdoor and vehicle-mounted environments, reducing failure risks

4. Stable connection in high-vibration environments
Function: Optimized structure, excellent anti-vibration performance
Advantages: Not prone to loosening or falling off in vibration scenarios
Benefits：Long-term use ensures reliable connection, reducing maintenance costs

5. Compliant and environmentally friendly materials
Function：Materials comply with RoHS/REACH/HF/CP65 standards
Advantages：No harmful substances, environmentally friendly and safe
Benefits：Meet global customers' environmental compliance requirements, suitable for export markets

Signal transmission for electric two-wheelers, Small industrial equipment, Smart instruments, Low-power outdoor devices
