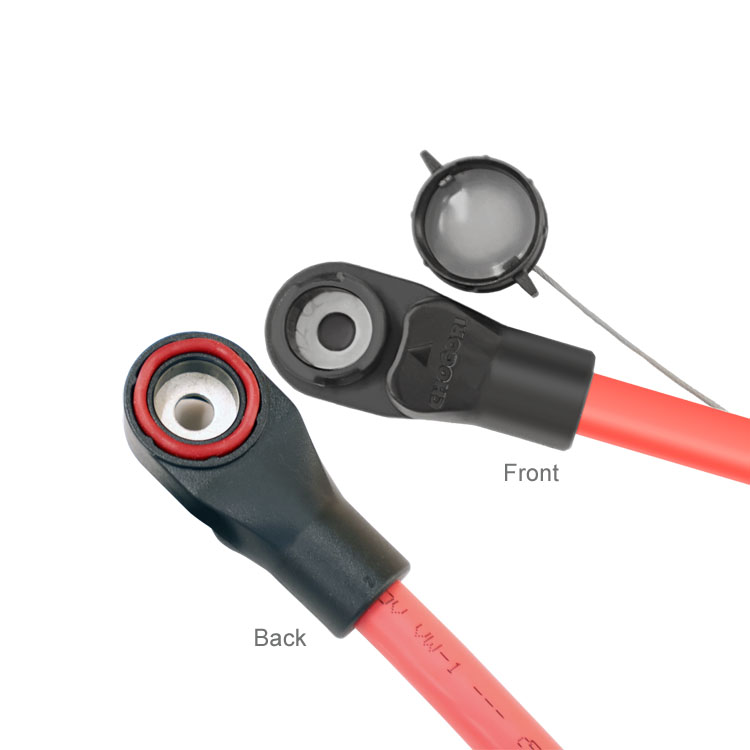

ES-CP06 125A

适用于控制器、两/三轮锂电池,以及其他通过 OT 端子传输电流的设备

优势:

• 高性能

• 高防护

• 成本友好

Specifications Challenges Positioning Applications Cases FAQ Related

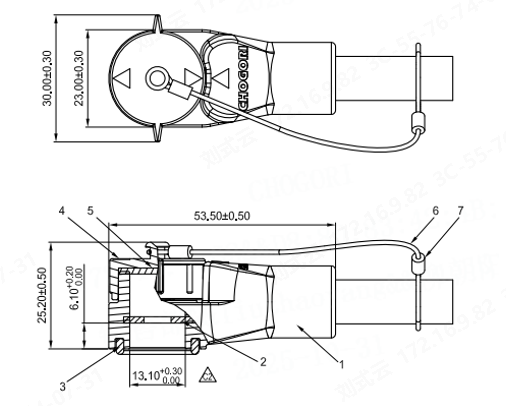

Specifications

性能参数:

● 额定电压:630VAC

● 额定电流:125AMAX

● 防护等级:IP67(Mated )/IPXXD

● 接线规格:25mm²MAX

● OT端子适配螺钉规格:M6*1.0 @8.0N.m

● 没有预装螺丝组件

能带线出货



Challenges

狭小空间下的大电流插拔难题

在踏板电摩中,电池通常安装于踏板下方,插拔空间有限。传统大电流连接器在该场景下,普遍存在操作不便的问题。

● 断开费力

狭小空间内手指难以抓稳,施力角度受限,断开时难以形成有效拔出力。

●接通不顺

插入过程中受空间与角度限制,容易出现插不牢、反复调整等情况。

●体验差与安全隐患

插拔不顺畅影响用户体验,频繁拆装也可能带来虚接、发热及误触风险。

Positioning

LD80 助力连接器

● 单手省力插拔

助力把手设计,在狭小空间内也可单手完成插拔操作,断开更省力、接通更顺畅。

●超窄紧凑设计

40 mm 窄体结构,充分适配踏板电摩等高密度空间布局,减少安装干涉。

● 充放一体方案

提供 80A 放电 + 40A 充电 配套方案,触指帽满足 IPXXB 要求,简化线束并提升用电安全。


Applications

LD80 助力连接器基于电摩市场的真实痛点开发,主要应用于电摩产品。同时,其省力插拔与紧凑结构设计,也可适用于机器人 / AGV、便携储能 / 移动电源及部分工业设备等场景。


Cases

LD80 助力连接器基于电摩市场的真实痛点开发,主要应用于电摩产品。同时,其省力插拔与紧凑结构设计,也可适用于机器人 / AGV、便携储能 / 移动电源及部分工业设备等场景。


FAQ

Q

How can I obtain technical information and drawings for Chogori products?

A
You can download product manuals, specifications, 3D models, and certification files for free in the "Service and Support → Data Download" section of the official website; You can also contact online customer service or sales engineers to provide project information and obtain customized technical materials. You can submit your requirements through the "Sample Application" page on the official website, specifying the model, quantity, application scenario, and contact information; Samples will be sent out within 3-5 working days after approval. Regular samples are free, while special customized samples require negotiated fees. Qiaoheli has complete customization and development capabilities, and can provide integrated solutions for connectors, wiring harnesses, and components based on customer requirements such as current, protection level, size, and environmental conditions.
