Mating Cycle：3,000 Cycles |
Voltage Rating：300V AC (power), 80V DC (signal) |
Operating Temperature：-40°C to 105°C |
|
Pullout Force：<100N |
Current Rating：50A + 15A + 5A |
IP Rating：IP67 Mated |
|
Wire Processing：Solder |
Withstand Voltage：1,500V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：Power 9AWG/ Max Signal 1 Pin 16AWG/ Max Signal 5 Pin 20AWG/ Max |
Insulation Resistance：>100MΩ at DC 500V |
Flammability Rating： |
Products

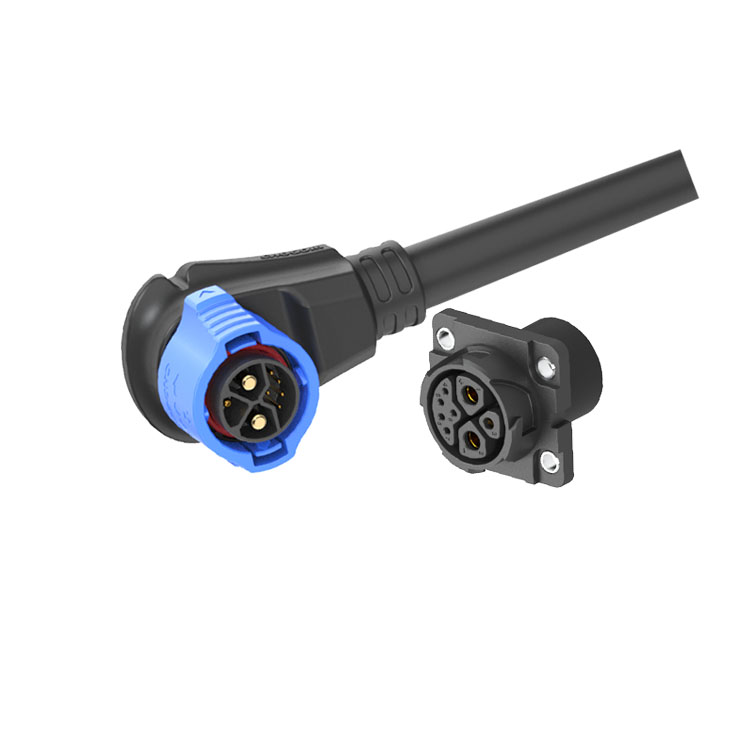

Large Pro 2+1+5 Pin (50A+15A+5A)
Applications: Charging & discharging application
Advantages
• Reliability: Vibration Resistance; 4 Locking Dots Design
• Ease of Use: Proper Connection Detectability
• Compatibility: Backward Compatible with Large 2+1+5
• RoHS and REACH compliant
