Rated Voltage: 125V
Rated Current: 5A
Withstand Voltage: 1,500V AC
Insulation Resistance: 100MΩ at DC 500V
IP Rating: IP67 Mated
OperatingTemperature: -40°C to 105°C
Salt Spray: 5% Nacl, 48H
Mating Cycle: 500 Cycles
Wire Processing: Solder
Wire Gauge: 20~22AWG
Flammability Rating: UL94V-0

In applications such as IoT devices, outdoor lighting, and robotics, connectors are often exposed to rain, dust, and extreme temperature fluctuations over extended periods. Common challenges include water ingress that can lead to short circuits or signal interruptions, contact corrosion that increases contact resistance, performance degradation after repeated mating cycles, and material embrittlement under low-temperature conditions. These issues can increase equipment failure rates, maintenance requirements, and overall operating costs.

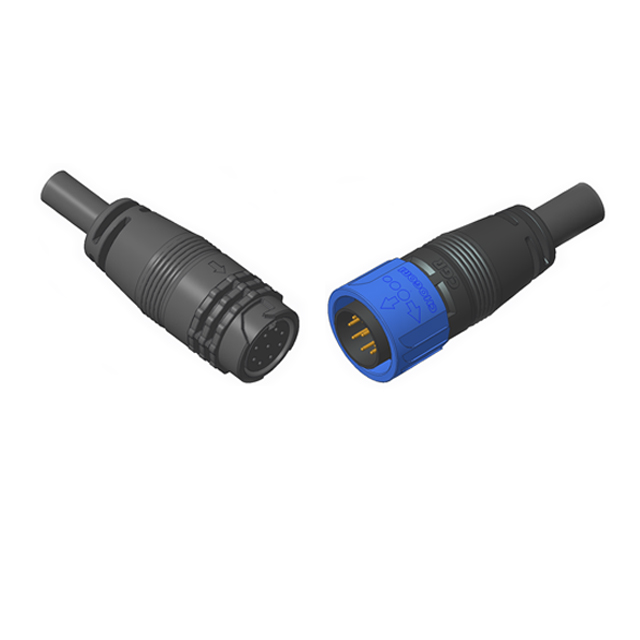

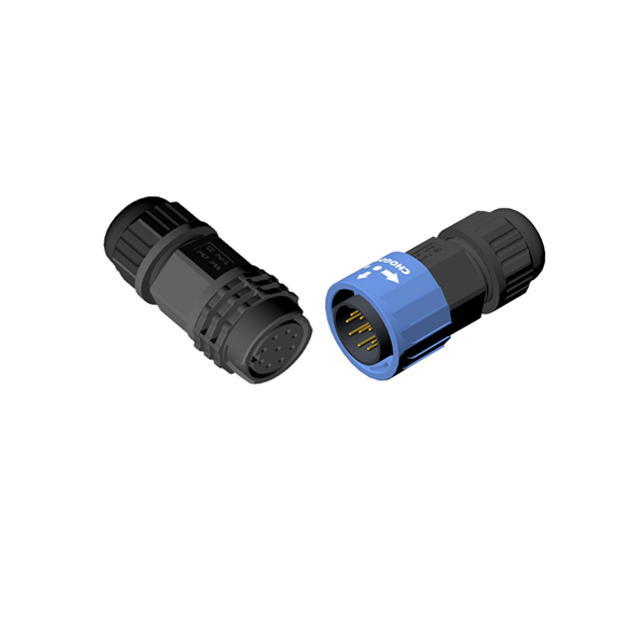

The Large 9 pin Connector is designed to provide reliable power and signal connectivity in demanding outdoor environments. With IP67 protection when mated and a wide operating temperature range of -40°C to 105°C, it helps maintain stable connection performance across varying environmental conditions. This enables more reliable outdoor equipment operation while helping reduce field maintenance requirements and minimize downtime.

The Large 9 pin is a rugged connector designed for reliable power and signal connectivity in demanding environments. It features IP67 protection, supports 500 mating cycles, and offers salt spray resistance, a wide operating temperature range, and high insulation performance.

Designed for applications including IoT, outdoor lighting, and robotics, the Large 9 pin helps address the challenges of maintaining reliable power and signal connections in harsh outdoor and industrial environments.

IP67 Protection for Reliable Outdoor Connectivity

The Large 9 pin connector achieves IP67 protection when mated, helping maintain sealing performance against dust and temporary water immersion. Compared with conventional IP65 or non-sealed connectors, its higher level of environmental protection helps reduce the risk of water and dust ingress in applications exposed to heavy rain, water spray, and dusty conditions. This helps customers minimize connection-related short circuits, signal interruptions, and field repairs, reducing maintenance requirements and equipment downtime.

Salt Spray Resistance and Wide Temperature Range for Harsh Environments

The connector withstands a 48-hour salt spray test with 5% NaCl and supports an operating temperature range of -40°C to 105°C. Its contact and housing materials are designed to provide resistance to corrosion and temperature variation. Compared with standard industrial connectors, the design provides enhanced environmental durability for applications such as coastal and marine equipment, outdoor lighting, and high-humidity environments with significant temperature fluctuations. This helps reduce the impact of corrosion, low-temperature embrittlement, and high-temperature deformation, supporting longer service life and fewer component replacements.

500 Mating Cycles for Durable, Serviceable Connections

The Large 9 pin supports 500 mating cycles and incorporates wear-resistant contact components to help maintain stable electrical performance over repeated connection and disconnection. Compared with connectors with lower mating-cycle ratings, it is well suited for applications requiring frequent mating, inspection, maintenance, or module replacement. This helps reduce connector replacement requirements over the equipment lifecycle while lowering maintenance labor and spare-parts costs.

IoT, outdoor lighting, electric gardening tools, robotics, AGVs, and marine equipment.
