| Mating Cycle: ≥3000 Times | Voltage Rating: 630V DC | Operating Temperature: -40°C to 105°C |
| Wire Processing: Crimp / Solder | Current Rating: 100A+5A | IP Rating: IP66 Mated; IP67 Panel Side |
| Insulation Resistance: >100MΩ | Peak Current: Power 180A 30S | Salt Spray: 48h |
Wire Gauge: Power 25mm²/Max Signal 22AWG/Max | Withstand Voltage: 2500V AC | Flammability Rating: UL94V-0 |
Products

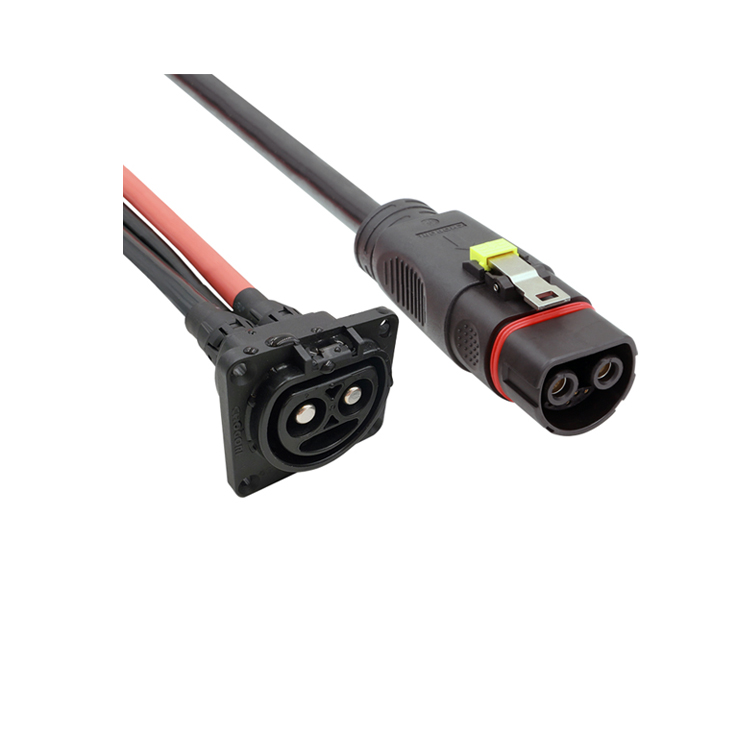

Banga100 2+6 Pin (100A+5A)
High power & lithium charging
Advantages:
• Lock with Latch
• Self-locking button to prevent accidental unlocking
• Up to 6 signal pins
• Audible click when lock engaged

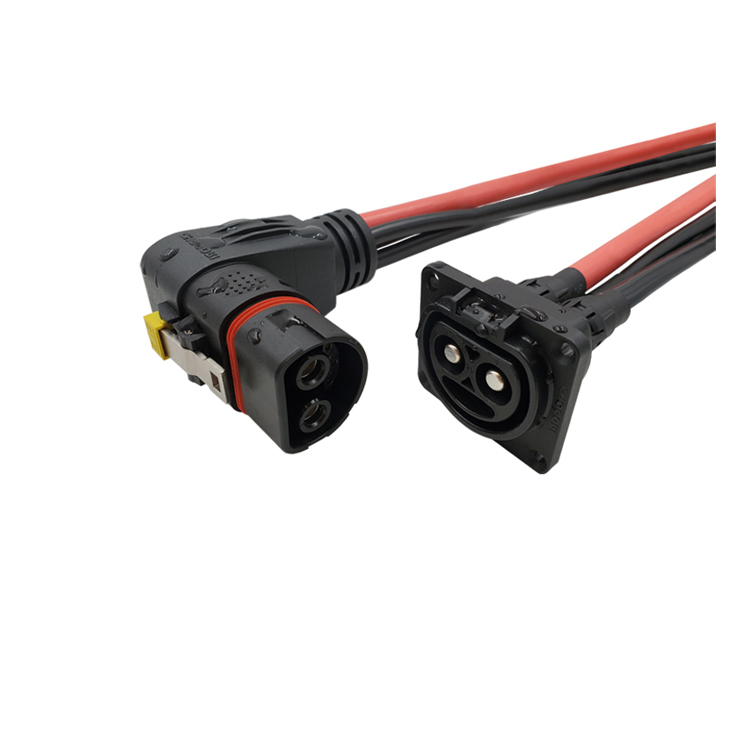

• Countersunk panel mount solution with 90 degree cable out to reduce the overall height
• RoHS and Reach Compliant
• IPXXB
