Mating Cycle：≥3,000 Cycles |
Voltage Rating：630V DC |
Operating Temperature: -40°C to 105°C |
|
Wire Processing：Crimp/ Solder |
Current Rating：100A+10A |
IP Rating：IP66 mated; IP67 panel side |
|
Insulation Resistance：>100MΩ |
Peak Current：Power 180A 30S |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：Power 25mm², Signal 20AWG/Max |
Withstand Voltage：2,500V AC |
Flammability Rating：UL94V-0 |
Products

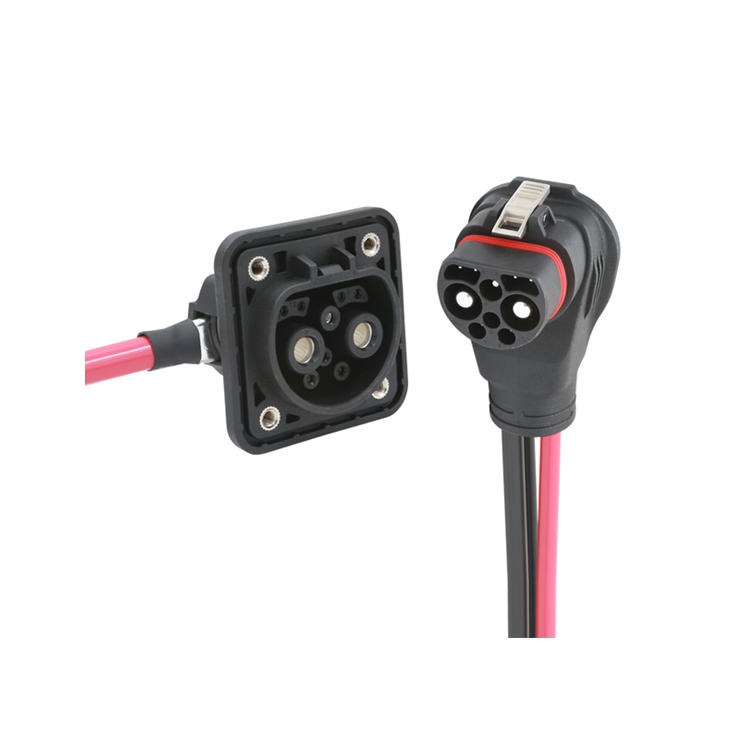

Banga X100 (100A+10A)
Applications: Hybrid Connector for Residential & Portable Energy Storage
Advantages
• Snap lock mechanism
• Self-locking button to prevent accidental unlocking
• Up to 6 signal pins
• Audible click when lock engaged
• RoHS and REACH compliant
