Mating Cycle：≥5,000 Cycles |
Voltage Rating：125V DC (Power) |
Operating Temperature：-40°C to 105°C |
|
Pullout Force：<100N |
Current Rating：60A+5A |
IP Rating：IP67 Mated, Panel Side |
|
Wire Processing：Crimp (Power) / Panel Side |
Withstand Voltage：1,500V AC |
Salt Spray：5% Nacl, 48H |
|
Wire Gauge：Power 8AWG/ Max, Signal 20AWG/ Max |
Insulation Resistance：>100MΩ |
Flammability Rating：UL94V-0 (Plastic Material) |
Background
As e-mobility charging and battery swapping systems continue to evolve toward higher power and more demanding operating conditions, traditional connector solutions face increasing challenges in vibration resistance, operational safety, and current capacity. Manufacturers require a connector solution that delivers enhanced reliability and safety while maintaining compact size and optimized system cost for mainstream vehicle platforms. Mate60 2+4/2+1+5 is developed to meet these evolving market requirements.
Product Positioning
Mate60 2+4/2+1+5 is a 60A connector solution designed for mainstream e-mobility charging and battery swapping applications. Positioned between conventional 40A platforms and high-power 80A systems, Mate60 provides an optimized balance of power capability, safety protection, mechanical stability, and cost efficiency. It is an ideal upgrade solution for manufacturers seeking improved reliability without moving to oversized high-current architectures.
Product Feature
• Enhanced Anti-Vibration StructureThe optimized 3-lock mechanical structure enhances mating stability under continuous vibration conditions commonly found in e-motorcycle charging and discharging applications. Designed for stable power transmission and long-term durability, Mate60 delivers reliable connection performance in demanding e-mobility operating environments.
• Finger-Proof Safety Design
Integrated finger-proof protection helps reduce the risk of accidental contact with live terminals, improving operational safety during handling and maintenance.
• Balanced 60A Power Capability
With a 60A current rating, Mate60 offers an optimized balance between connector size, electrical performance, and system cost for mainstream power platforms.
Application Scope
• Electric Motorcycles• Battery Swapping Systems
• Charging & Discharging Equipment
• Light Electric Vehicles
• E-Mobility Power Platforms
• Energy Storage
The Mate60 2+4/2+1+5 are designed to support reliable power transmission in demanding operating environments commonly found in urban mobility and battery service applications.

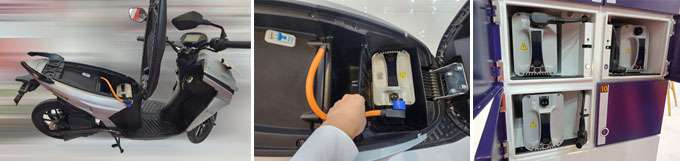

Cooperation Case
