Mating Cycle：≥5,000 Cycles | Voltage Rating：125V DC (Power) | Operating Temperature：-40°C to 105°C |
Pullout Force：<100N | Current Rating：60A+15A+5A | IP Rating：IP67 Mated Panel Side |
Wire Processing：Crimp (Power), Solder (Signal) | Withstand Voltage：1,500V AC | Salt Spray：5% Nacl, 48H |
Wire Gauge：Power 2 Pin 8AWG/ Max Signal 1 Pin 16AWG/ Max Signal 5 Pin 20AWG/ Max | Insulation Resistance：>100MΩ at DC 500V | Flammability Rating：UL94V-0 (Plastic Material) |
Products
Mate60 2+1+5 Pin (60A+15A+5A)

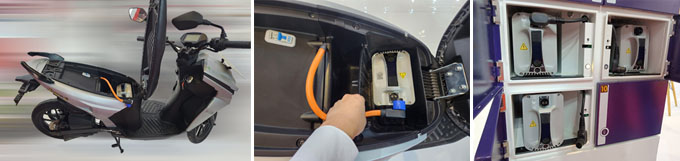

Applications: Charging & discharging application
Advantages
• Push-lock mechanism
• Locking nut with lever
• Audible click when lock engaged
• 3 dots design increase stable connection in vibrating environment
• Countersunk panel mount solution with 90 degree cable out to reduce the overall height
• RoHS and REACH compliant
